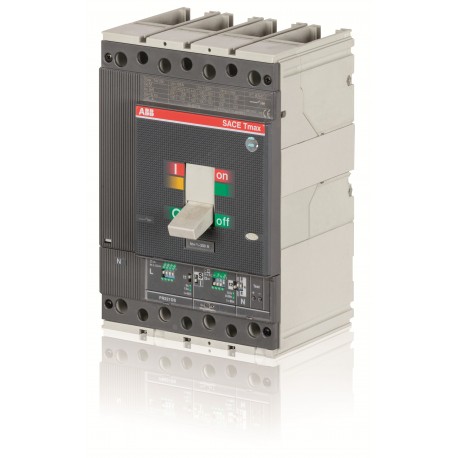

T4V320 1SDA054153R1 ABB T4V 320 PR221DS-LS/I In 320 4p F F
T4V320
1SDA054153R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb T4V320 is a robust molded case circuit breaker designed for dependable overcurrent protection in industrial and commercial switchgear assemblies. Electrical engineers specify units of this type to isolate faults and protect downstream machinery from electrical damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 5963572f-7a37-46e0-a840-6477650217ec China
- Simplified SCIP: 77673832-f3f7-47d3-9e27-6908c1a2c6a4 Netherlands
- Environmental Information: 9AKK10103A1057
- E-Number (Finland): 3655210
- EAN: 8015644552459
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 3.05 kg
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5963572f-7a37-46e0-a840-6477650217ec China |
| Simplified SCIP | 77673832-f3f7-47d3-9e27-6908c1a2c6a4 Netherlands |
| c5b88752-52c6-4e38-9462-057bbec284cc Poland | |
| b574eed2-aad6-4b5d-9c47-e89f2ba25ed7 Hungary | |
| 5af022a8-feb0-41a1-9b5a-748d0697d4c8 Greece | |
| 2723d0d3-086b-4ebe-9abe-d56d4e7fa041 Estonia | |
| dcf198fd-d185-47e3-b465-8a1378b0e33b Finland | |
| 8b4ee9aa-f6b9-4372-b92c-8e73de333bb0 Belgium | |
| 87b2f10f-da90-4f5a-94c7-a726de780bc2 Germany | |
| 4c22b9f6-8a3a-4a95-ac7b-6b8a969f5580 Denmark | |
| ccfe05e2-50b8-43f9-b2cf-79987b1dfe08 Germany | |
| 0225670c-b5a9-4535-a61c-fa740d78ab6f Croatia | |
| f6494860-8370-4867-baa6-e49cea4c0e18 France | |
| e620496c-4f97-4613-9290-202bdba632ef Sweden | |
| db5c4725-00ab-43e4-83e4-ac8d65d7dda0 Germany | |
| 5e73504d-62f2-4a0d-b409-c797afd76d54 Hungary | |
| bdd4a26d-787c-469e-bf3d-9b60b5051c9e Belgium | |
| 87809e71-8319-4d5f-9e2e-d8e7993f70bb Germany | |
| 5a948e45-d845-4e55-b16f-4295be81bcea Poland | |
| 6886c6f2-8804-4f91-ac4b-f5b44e1c55ff France | |
| 4b4c82ae-ab33-49ea-8a68-f1dbad191be1 Portugal | |
| 7ede02a0-753d-4e5d-998f-9145e5612e6c Sweden | |
| 9b7f390a-846a-4ff5-a74e-21a8f2920661 Bulgaria | |
| e5b4ceb3-bfa3-441d-91cc-d39012458713 Poland | |
| a29bf287-a3e1-4b66-bc32-fd856b8bbed4 Czech Republic | |
| 1d761f7a-2e30-4e8a-9d6a-f422783f6300 Norway | |
| 38bbcf1b-f96d-4dda-baff-20eb6464a83e Spain | |
| 1c401f96-6a8f-4a8b-910a-97e2b1233fba Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| Ordering | |
| E-Number (Finland) | 3655210 |
| EAN | 8015644552459 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.05 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644552459 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 6000 cycle |
| 120 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 17.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (400 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 180 kA | |
| (500 V AC) 150 kA | |
| (690 V) 150 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (400 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 180 kA | |
| (500 V AC) 150 kA | |
| (690 V AC) 80 kA | |
| Rated Uninterrupted Current (Iu) | 320 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000436R0001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
