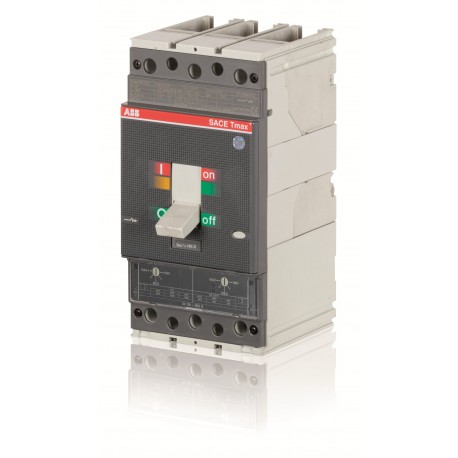

1SDA063410R1 ABB T4V 250 TMD 32-320 3p F FC 1150V AC
1SDA063410R1
063410
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as an ABB T4V 250 TMD 32-320 3p F FC 1150V AC, this molded case circuit breaker protects electrical distribution networks against thermal overloads and short circuits. Industrial installations rely on such compact protective devices to safeguard equipment operating at elevated voltage levels. Relevant technical data values are summarized below.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK10103A1057
- EAN: 8015644660192
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85352100
- Product Net Width: 105 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 2.35 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 248 mm
- Package Level 1 Height: 240 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644660192 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 2.35 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 2.5 kg |
| Package Level 1 EAN | 8015644660192 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| Technical | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 3.7 W |
| Rated Current (In) | 32 A |
| Rated Operational Voltage | 1150 V AC |
| 1000 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 12 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 200 kA |
| (1000 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | TMD |
| Release Type | TM |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000457R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
