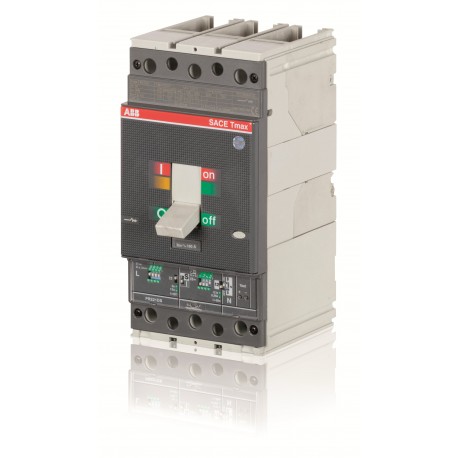

T4N320 1SDA054117R1 ABB T4N 320 PR221DS-LS/I In 320 3p F F
T4N320
1SDA054117R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB T4N320 1SDA054117R1 T4N 320 PR221DS-LS/I In 320 3p F F is a molded case circuit breaker engineered to protect commercial and industrial power distribution networks. Electrical engineers specify these units to safeguard conductors against overcurrent and short-circuit events.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c8261068-2394-4e97-b79c-4aa8dfdf22fd Italy
- Environmental Information: 9AKK10103A1057
- E-Number (Finland): 3655174
- E-Number (Sweden): 3180305
- EAN: 8015644552169
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 105 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 3.639 kg
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c8261068-2394-4e97-b79c-4aa8dfdf22fd Italy |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| Ordering | |
| E-Number (Finland) | 3655174 |
| E-Number (Sweden) | 3180305 |
| EAN | 8015644552169 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.639 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 246 mm |
| Package Level 1 Depth / Length | 290 mm |
| Package Level 1 Gross Weight | 3.83 kg |
| Package Level 1 EAN | 8015644552169 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 6000 cycle |
| 120 cycles per hour | |
| Gross Volume | 17,835 cm³ |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 17.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V) 20 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 320 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| Instructions and Manuals | 1SDH000436R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
