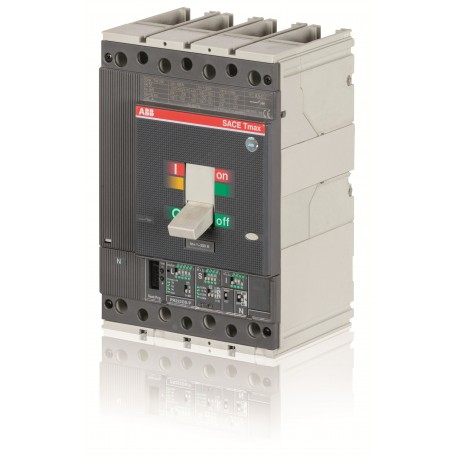

ABB 1SDA063420R1 1SDA063420R1 ABB T4L250 PR222DS/P-LSI In100 4p FFC1000VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063420R1 ABB T4L250 PR222DS/P-LSI In100 4p FFC1000VAC

1SDA063420R1

063420

ABB

1 Pcs.

T4L250 PR222DS/P-LSI In100 4p FFC1000VAC T4L250 PR222DS/P LSI R100 4P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a robust molded case circuit breaker, the 1SDA063420R1 ABB T4L250 PR222DS/P-LSI In100 4p FFC1000VAC provides dependable circuit protection by disconnecting power when abnormal current conditions occur. Industrial control panels and electrical distribution systems rely on these devices to maintain operational safety and equipment longevity.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1057
  • EAN: 8015644660390
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 140 mm
  • Product Net Height: 205 mm
  • Product Net Depth / Length: 103.5 mm
  • Product Net Weight: 3.05 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 248 mm
  • Package Level 1 Height: 240 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1057
9AKK108467A6707
Ordering
EAN8015644660390
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight3.05 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight3.5 kg
Package Level 1 EAN8015644660390
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
Technical
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 1.7 W
Rated Current (In)100 A
Rated Operational Voltage1000 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 12 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(415 V AC) 120 kA
(1000 V AC) 12 kA
Rated Uninterrupted Current (Iu)250 A
ReleasePR222DS/P-LSI
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT4
Terminal Connection TypeFixed Circuit-Breakers
Front for Copper Cables
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A5540
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0061
Instructions and Manuals1SDH000457R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
