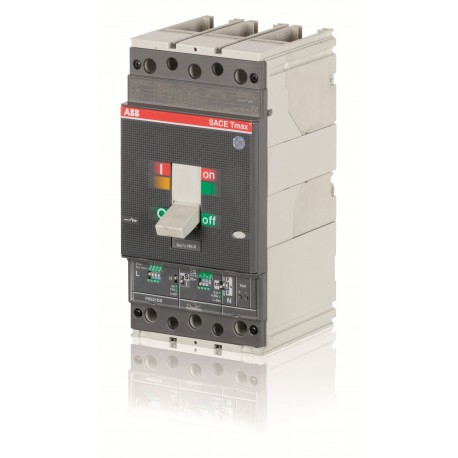

1SDA054505R1 ABB T4L250 PR221DS-LS/I In100 3p FFC 1000VAC
1SDA054505R1
054505
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-performance circuit breaker like the Abb 1SDA054505R1 is installed in power distribution panels to protect electrical circuits from damage caused by excess current from an overload or short circuit. Its robust switching mechanism ensures safe interruption of high fault currents in industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: ca6e16cf-d5bc-4f35-8d79-0c45fe015153 Italy
- Simplified SCIP: 73c4eab2-6057-4468-b21d-4956630591b4 Belgium
- Environmental Information: 9AKK10103A1057
- EAN: 8015644556075
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 105 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 3.5 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | ca6e16cf-d5bc-4f35-8d79-0c45fe015153 Italy |
| Simplified SCIP | 73c4eab2-6057-4468-b21d-4956630591b4 Belgium |
| 7a7c99c6-6570-429a-bf3d-04fdbe25dba0 Spain | |
| 99b333dd-80f7-404a-a6e4-ec0f97f08c79 Hungary | |
| 4faaf606-e6e6-488b-aaec-fa6aa85b167b Germany | |
| ba8b807c-8e52-43ff-a2a4-206e9f1934cb Germany | |
| 331712b8-a4d0-4b43-b6ba-57fab5cf9254 Sweden | |
| b4dc3bcd-fcaf-42fa-aca6-0312c98473a3 France | |
| af9453bb-7baf-4c9f-b8d2-5f68581b55f6 Bulgaria | |
| e10120ca-8613-41e1-8be2-ad187864cc6b France | |
| cd22418e-8a0c-4aae-8f79-672c60ffe342 Belgium | |
| 22f3690e-8b8c-4f2c-8918-80756317b712 Finland | |
| 219e0d21-117a-4a50-9a9c-2099937fef30 Norway | |
| 7441d39a-5fa2-40b6-9fb2-c67fab61a4a6 Poland | |
| c08f29b6-6721-4d33-807e-144c1b11fe4d Germany | |
| 9c983ade-6cb5-482c-8442-9ae4b2063bea Denmark | |
| 967763e4-b709-4380-be07-6f000a20413d Germany | |
| 8f61a6d2-0d45-4537-963a-8a031b6ed2bd Germany | |
| e4317d41-3872-4bf9-acec-9f0d01939782 Poland | |
| b076d167-133b-4fb3-adab-84dd052791b7 Czech Republic | |
| bbf98f80-3176-48b0-9275-9a76202e3f42 Croatia | |
| 2445841a-9264-4cb9-ba98-b231cbfe5c01 Netherlands | |
| bec2231f-d775-495f-b227-adc91b873004 Hungary | |
| 0241d516-321b-467e-a3e2-927bb873d4dc Sweden | |
| c974c19b-1cdf-41ae-9a1d-69350c035bb1 Greece | |
| 74730f26-5541-4eb5-bf9f-38f99719710a Portugal | |
| a924d4f2-5420-47a7-a062-c684243aaa05 Estonia | |
| 3e95238f-3c2d-4752-9cc4-e877efa81fd2 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644556075 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644556075 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 8000 cycle |
| 120 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 1.7 W |
| Rated Current (In) | 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1150 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 12 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 12 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 1000 V AC |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000457R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
