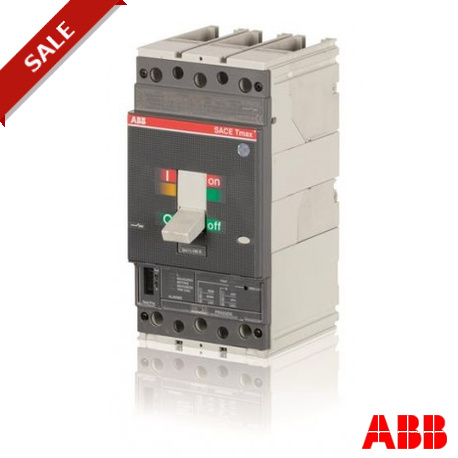

T4L320 1SDA059519R1 ABB T4L 320 PR223DS In 320A 3p F F
T4L320
1SDA059519R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Offering superior circuit protection, the Abb automatic circuit breaker prevents electrical damage by rapidly clearing overloads and short circuits in industrial power circuits. Its precision release mechanism ensures dependable performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Electrical Durability: 6000 cycle 120 cycles per hour
- Mechanical Durability: 20000 cycle 240 cycles per hour
- Number of Poles: 3
- Power Loss: at Rated Operating Conditions per Pole 17,6 W
- Product Main Type: SACE Tmax T
- Product Name: Automatic Circuit Breaker
- Product Type: CB
- Rated Current (I n ): 320 A
- Rated Impulse Withstand Voltage (U imp ): 8 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 690 V AC 750 V DC
- Rated Uninterrupted Current (I u ): 320 A
- Release Type: EL
- Standards: IEC 60947
- Sub-type: T4
- Terminal Connection Type: Fixed Circuit-Breakers Front
More info
▲C.BREAKER TMAX T4L 320 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223DS R 320
Ordering
- EAN:
- 8015644619275
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 105mm
- Product Net Height:
- 205mm
- Product Net Depth:
- 103.5mm
- Product Net Weight:
- 3.5kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 228 mm
- Package Level 1 Height:
- 228 mm
- Package Level 1 Length:
- 286 mm
- Package Level 1 Gross Weight:
- 3.5 kg
- Package Level 1 EAN:
- 8015644619275
Additional Information
- Electrical Durability:
- 6000 cycle
120 cycles per hour
- Mechanical Durability:
- 20000 cycle
240 cycles per hour
- Number of Poles:
- 3
- Power Loss:
- at Rated Operating Conditions per Pole 17,6 W
- Product Main Type:
- SACE Tmax T
- Product Name:
- Automatic Circuit Breaker
- Product Type:
- CB
- Rated Current (In):
- 320 A
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 70 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 20 kA
(230 V AC) 20 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 70 kA
(250 V DC) 2 Poles in Series 100 kA
(500 V DC) 2 Poles in Series 70 kA
(750 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu):
- 320 A
- Release Type:
- EL
- Standards:
- IEC 60947
- Sub-type:
- T4
- Terminal Connection Type:
- Fixed Circuit-Breakers
Front
- Test Voltage Max (Utest):
- 3500 V
- Version:
- F
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC210023D0201
- Declaration of Conformity - CE:
- 1SDL000165R0004
- GL Certificate:
- 1SDL000163R0061
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code:
- Q
- UNSPSC:
- 39121100
