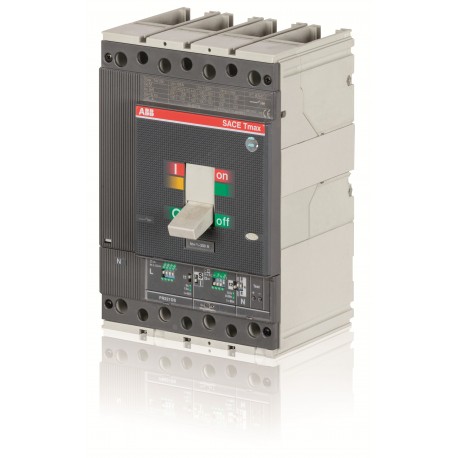

ABB T4H320 T4H320 1SDA054138R1 ABB T4H 320 PR221DS-I In 320 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T4H320 1SDA054138R1 ABB T4H 320 PR221DS-I In 320 4p F F

T4H320

1SDA054138R1

ABB

1 Pcs.

T4H 320 PR221DS-I In=320 4p F F T4H320 PR221DS I R320 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB T4H320 circuit breaker ensures dependable protection against electrical overloads and short circuits within industrial power distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): Document availability on demand
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1057
  • EAN: 8015644552374
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 140 mm
  • Product Net Height: 205 mm
  • Product Net Depth / Length: 103.5 mm
  • Product Net Weight: 3.05 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 248 mm
  • Package Level 1 Height: 240 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1057
Ordering
EAN8015644552374
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight3.05 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight3.5 kg
Package Level 1 EAN8015644552374
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT4
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability6000 cycle
120 cycles per hour
Mechanical Durability20000 cycle
240 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 17.6 W
Rated Current (In)320 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V) 40 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Uninterrupted Current (Iu)320 A
ReleasePR221DS-I
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT4
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5540
GL Certificate1SDL000163R0061
Instructions and Manuals1SDH000436R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
