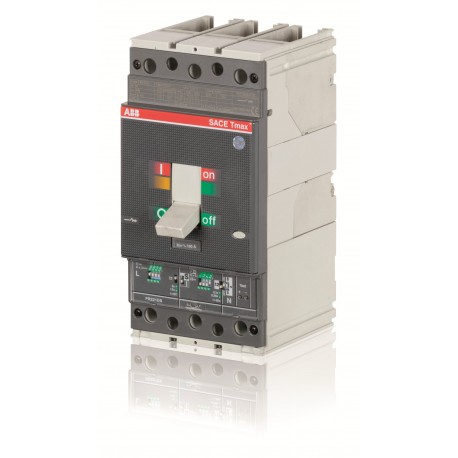

T4H320 1SDA054134R1 ABB T4H 320 PR221DS-I In 320 3p F F
T4H320
1SDA054134R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb, the T4H320 1SDA054134R1 ABB T4H 320 PR221DS-I In 320 3p F F is a molded case circuit breaker designed to protect electrical distribution networks against overloads and short circuits. Devices of this type are routinely integrated into industrial switchboards and control panels to safely interrupt fault currents and isolate downstream loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 56afec3b-f2a5-468d-847d-7b0750a1d26c China
- Environmental Information: 9AKK10103A1057
- E-Number (Finland): 3655518
- EAN: 8015644552336
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 105 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 3.5 kg
- Package Level 1 Units: 1 piece
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 56afec3b-f2a5-468d-847d-7b0750a1d26c China |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| Ordering | |
| E-Number (Finland) | 3655518 |
| EAN | 8015644552336 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644552336 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 6000 cycle |
| 120 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 17.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V) 40 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 320 A |
| Release | PR221DS-I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000436R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
