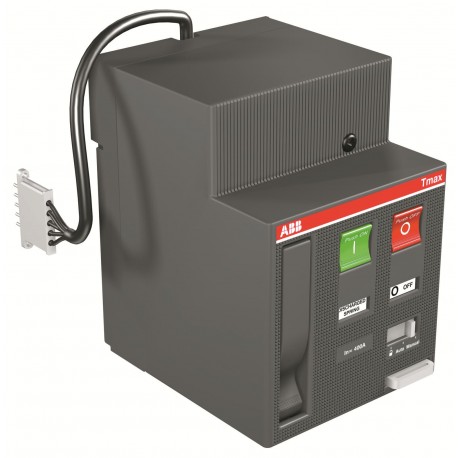

ABB 1SDA054900R1 1SDA054900R1 ABB MOE-E MOTOR+COM 48-60VDC T4/5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054900R1 ABB MOE-E MOTOR+COM 48-60VDC T4/5

1SDA054900R1

054900

ABB

1 Pcs.

MOE-E MOTOR+COM 48-60VDC - T4/5 MOE-E T4-T5 48...60 Vdc X REM.CONTR.

Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB MOE-E MOTOR+COM 48-60VDC T4/5 motor operator automates the remote opening and closing of circuit breakers in industrial distribution panels. This type of motorized operating mechanism allows for reliable switching operations from a control room, improving system safety and reducing manual intervention in complex electrical networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • EAN: 8015644559830
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2.2 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 153 mm
  • Package Level 1 Height: 189 mm
  • Package Level 1 Depth / Length: 158 mm
  • Package Level 1 Gross Weight: 2.34 kg
  • Package Level 1 EAN: 8015644559830

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8015644559830
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2.2 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width153 mm
Package Level 1 Height189 mm
Package Level 1 Depth / Length158 mm
Package Level 1 Gross Weight2.34 kg
Package Level 1 EAN8015644559830
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT4, T5
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
Current TypeDC
Rated Voltage (Ur)48 ... 60 V DC
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000436R0621
External Classifications and Standards
ETIM 9EC001030 - Motor operator for power circuit-breaker
ETIM 10EC001030 - Motor operator for power circuit-breaker
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370412

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
