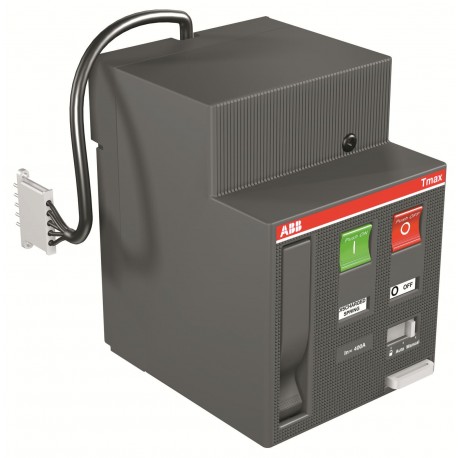

1SDA054899R1 ABB MOE-E MOTOR+COM 24VDC T4/5
1SDA054899R1
054899
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB MOE-E MOTOR+COM 24VDC T4/5 functions as a motorized operating mechanism equipped with communication features for advanced circuit breaker automation. Industrial applications depend on such units to execute remote electrical switching and monitor device states within complex distribution hubs. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT5M8-E
- EAN: 8015644559823
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 2.2 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 153 mm
- Package Level 1 Height: 189 mm
- Package Level 1 Depth / Length: 158 mm
- Package Level 1 Gross Weight: 2.34 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT5M8-E |
| EAN | 8015644559823 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 2.2 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 153 mm |
| Package Level 1 Height | 189 mm |
| Package Level 1 Depth / Length | 158 mm |
| Package Level 1 Gross Weight | 2.34 kg |
| Package Level 1 EAN | 8015644559823 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4, T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | DC |
| Rated Voltage (Ur) | 24 V DC |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000436R0621 |
| External Classifications and Standards | |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 10 | EC001030 - Motor operator for power circuit-breaker |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
