View larger
Images are for illustrative purposes only. Please refer to data sheet for details

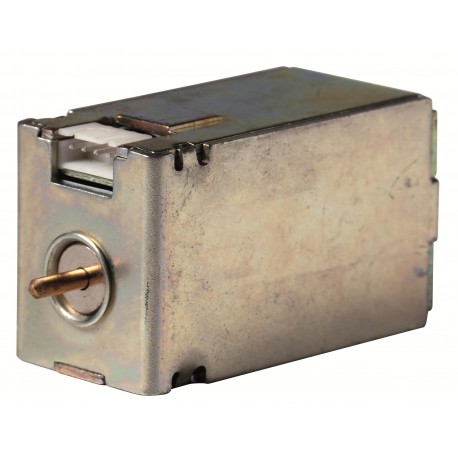

1SDA062065R1 ABB SOR T7-T7M-X1 24Va.c./d.c.
1SDA062065R1
062065
ABB
1 Pcs.
SOR T7-T7M-X1 24Va.c./d.c.
SOR APERT COIL 24VAC/DC - T7-T7M-X1
Automation > Switch spool for power circuit breaker
Accessories T7-X1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT7XS0 |
| EAN | 8015644645854 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.12 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 55 mm |
| Package Level 1 Depth / Length | 135 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 8015644645854 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T7, X1 |
| Suitable for Product Class | SACE Emax |
| SACE Tmax T | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 24 V AC |
| 24 V DC | |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000529R0602 |
| External Classifications and Standards | |
| ETIM 9 | EC002483 - Switch spool for power circuit breaker |
| ETIM 10 | EC002483 - Switch spool for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 4879 >> Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370421 |
