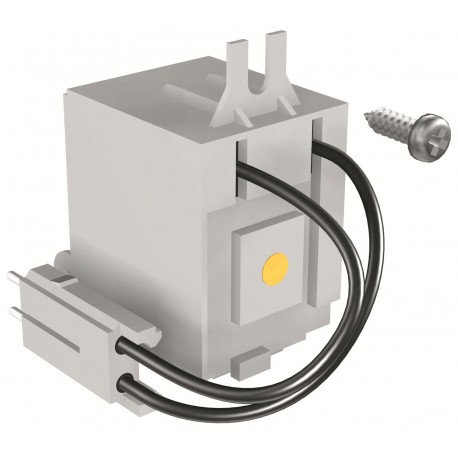

1SDA054875R1 ABB SOR-C T4-T5-T6 480...500 Vac
1SDA054875R1
480500
ABB
1 Pcs.
SOR-C T4-T5-T6 480...500 Vac
SOR-C COIL APERT 480VAC - T4-T5-T6
Automation > Switch spool for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 1SDA054875R1 ABB SOR-C T4-T5-T6 480...500 Vac functions as a shunt opening release accessory for industrial circuit breakers, enabling remote tripping capabilities in electrical distribution panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT5S1
- EAN: 8015644560034
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.12 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 60 mm
- Package Level 1 Depth / Length: 140 mm
- Package Level 1 Gross Weight: 0.15 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT5S1 |
| EAN | 8015644560034 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.12 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 8015644560034 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4, T5, T6 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Rated Voltage (Ur) | 480 ... 500 V AC |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000436R0602 |
| External Classifications and Standards | |
| ETIM 9 | EC002483 - Switch spool for power circuit breaker |
| ETIM 10 | EC002483 - Switch spool for power circuit breaker |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370421 |
