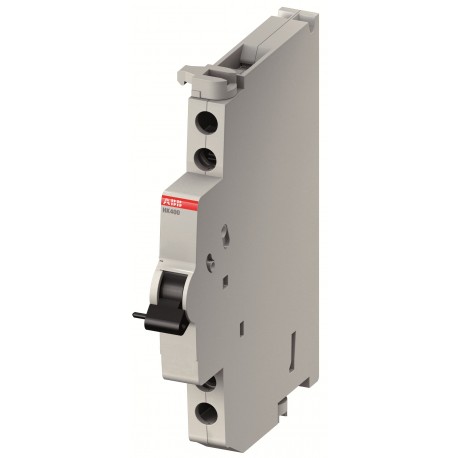

ABB 2CCF201165R0001 2CCF201165R0001 ABB SMISSLINE-C.SEÑ Der NCx2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCF201165R0001 ABB SMISSLINE-C.SEÑ Der NCx2

2CCF201165R0001

40002

ABB

1 Pcs.

SMISSLINE-C.SEÑ Der NCx2 SMISSLINE-C. SIGN: Der NCx2 SK40002-R Signal contact

Automation > Auxiliary contact block
SMISSLINE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb 2CCF201165R0001 SMISSLINE-C.SEÑ Der NCx2 device functions as an auxiliary switching component designed for modular electrical distribution systems. Technicians install these units within control panels to provide reliable auxiliary feedback and interlocking signals for downstream protection equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current AC-15 (I e ): (230 V) 2 A
  • Number of Auxiliary Contacts NC: 2
  • Number of Switches: 2
  • Rated Operational Voltage: 230 ... 400 V AC
  • Rated Current (I n ): 6 A
  • Power Loss: Total 0.24 W
  • Number of Contacts CO: 0
  • Number of Contacts NC: 2
  • Number of Contacts NO: 0
  • RoHS Declaration: 9AKK107991A9645
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20210407
  • REACH Declaration: 9AKK108467A9561
  • REACH Information: True - contains substances > 0.1 mass percentage
  • REACH Date: 20230417
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
Technical
Rated Operational Current AC-15 (Ie)(230 V) 2 A
Number of Auxiliary Contacts NC2
Number of Switches2
Electrical
Rated Operational Voltage230 ... 400 V AC
Rated Current (In)6 A
Power LossTotal 0.24 W
Number of Contacts CO0
Number of Contacts NC2
Number of Contacts NO0
Material Compliance
RoHS Declaration9AKK107991A9645
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20210407
REACH Declaration9AKK108467A9561
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20230417
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Environmental Information9AKK108467A9561
Dimensions
Product Net Width9 mm
Product Net Height92 mm
Product Net Depth / Length75 mm
Product Net Weight45 g
Dimension Diagram9AKK107492A6192
Engineering
EPLAN Data9AAF617139_EPLAN
Ordering
Package Level 1 Unitscarton 10 piece
Package Level 1 Gross Weight635 g
E-Number (Norway)1623627
E-Number (Switzerland)809992137
Certificates and Declarations
Declaration of Conformity - CE9AKK107991A9645
Installation
Instructions and Manuals2CCR203510B0001
Mounting TypePlug-In
Popular Downloads
Data Sheet, Technical Information9AKK107492A6192
External Classifications and Standards
ETIM 9EC000041 - Auxiliary contact block
ETIM 10EC000041 - Auxiliary contact block
UNSPSC39121522
eClassV11.0 : 27371302
Object Classification CodeF
StandardsIEC/EN EN60947-5-1
