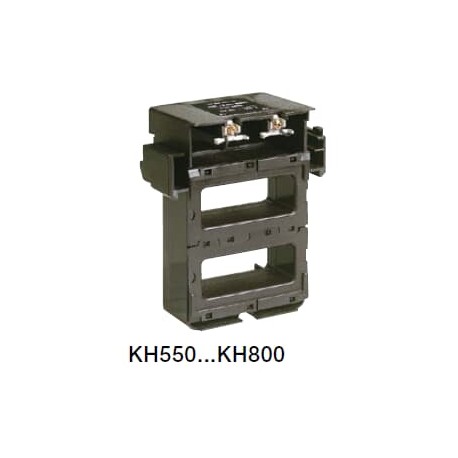

ABB SK828100-WE SK828100-WE ABB KH800 BOB. 77-143V DC CONT. EK370-1000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SK828100-WE ABB KH800 BOB. 77-143V DC CONT. EK370-1000

SK828100-WE

828100

ABB

1 Pcs.

KH800 BOB. 77-143V DC CONT. EK370-1000 KH800 77-143V DC Operating Coil

Automation > Accessories/spare parts for low-voltage switch technology
Spare parts Power Switches ABB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a specialized electromagnetic actuator, the ABB SK828100-WE ABB KH800 BOB. 77-143V DC CONT. EK370-1000 provides the magnetic force required to close and hold heavy-duty industrial contactors. Replacement operating coils are installed within high-amperage switching devices to restore or modify control voltage compatibility in motor starting circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: N/A
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 115 mm
  • Product Net Depth / Length: 180 mm
  • Product Net Height: 30 mm
  • Product Net Weight: 0.95 kg
  • Suitable For: EH150
  • Suitable for Product Class: EH Contactors
  • Product Name: Operating Coil
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • Toxic Substances Control Act - TSCA: 2CMT2023-006525

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsN/A
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width115 mm
Product Net Depth / Length180 mm
Product Net Height30 mm
Product Net Weight0.95 kg
Technical
Suitable ForEH150
EH160
EH250
EH370
EH550
EH700
EH800
EK100
EK145:EK160:EK200
EK270
EK370
EK550
EK1000
Suitable for Product ClassEH Contactors
Product NameOperating Coil
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CEN/A
Container Information
Package Level 1 Width185 mm
Package Level 1 Depth / Length120 mm
Package Level 1 Height35 mm
Package Level 1 Gross Weight0.99 kg
Package Level 1 EAN7320500215401
External Classifications and Standards
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
