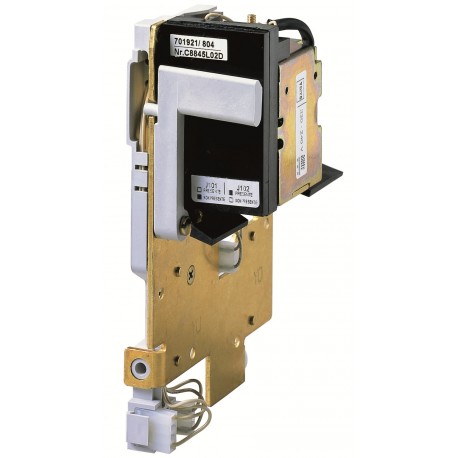

1SDA038297R1 ABB SHUNT CLOSING RELEASE 30V E1/6-T8
1SDA038297R1
038297
ABB
1 Pcs.
SHUNT CLOSING RELEASE 30V E1/6-T8
SCR YC COIL CLOSURE 30VAC/DC
Automation > Switch spool for power circuit breaker
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Acting as an internal closing mechanism, the 1SDA038297R1 ABB SHUNT CLOSING RELEASE 30V E1/6-T8 facilitates remote electrical closing operations for heavy-duty industrial circuit breakers.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- E-Number (Norway): 4376621
- EAN: 8015644382971
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 0.9 kg
- Package Level 1 EAN: 8015644382971
- Product Main Type: Accessories for Emax
- Product Name: Accessory
- Product Type: Accessory
- Suitable For: E1, E2, E3, E4, E6, T8
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Ordering | |
| E-Number (Norway) | 4376621 |
| EAN | 8015644382971 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 0.9 kg |
| Package Level 1 EAN | 8015644382971 |
| Additional Information | |
| Product Main Type | Accessories for Emax |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3, E4, E6, T8 |
| Suitable for Product Class | SACE Emax, SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 30 V AC/DC |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0013 |
| 1SDL000165R0014 | |
| 1SDL000165R0015 | |
| 1SDL000165R0016 | |
| 1SDL000165R0017 | |
| 1SDL000165R0008 | |
| Instructions and Manuals | 1SDC200006D0209 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
