View larger
Images are for illustrative purposes only. Please refer to data sheet for details

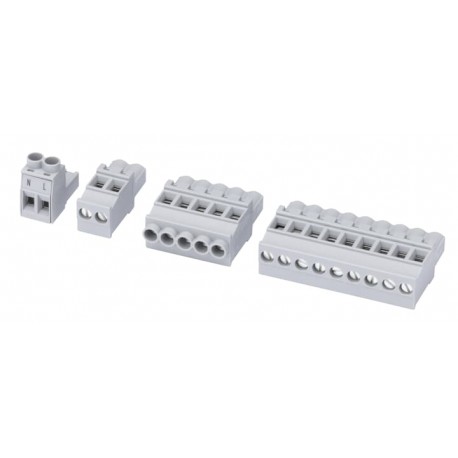

1SAJ929160R0001 ABB SET DE TERMINALES UMCTB-FBP.0
1SAJ929160R0001
929160
ABB
1 Pcs.
SET DE TERMINALES UMCTB-FBP.0
UMCTB-FBP.0 TERMINAL SET
UMCTB-FBP.0 Set of terminal blocks for UMC DC
Automation > Fieldbus, decentr. periphery - communication module
UMC and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Product Main Type | Accessories for Universal Motor Controllers |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC135013D0201 |
| Instructions and Manuals | 2CDC135013D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 13 mm |
| Product Net Depth / Length | 170 mm |
| Product Net Height | 10 mm |
| Product Net Weight | 0.042 kg |
| Technical | |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Mounting Type | DIN-Rail with Adapter |
| Mounting on DIN Rail | No |
| Recommended Screw Driver | Pozidriv 1 |
| Suitable For | UMC100-FBP |
| UMC100.3 | |
| Suitable for Product Class | Universal Motor Controllers |
| Terminal Type | Screw Terminals |
| Tightening Torque | Auxiliary Circuit 0.5 N·m |
| Control Circuit 0.5 N·m | |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 28-12 AWG |
| Rigid 1x 28-12 AWG | |
| Environmental | |
| Degree of Protection | IP20 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA983001-4501 |
| RoHS Information | 1SVD981001-4401 |
| RoHS Status | No declaration needed |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ATEX Certificate | Not available |
| Declaration of Conformity - CE | No declaration needed |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 13 mm |
| Package Level 1 Depth / Length | 170 mm |
| Package Level 1 Height | 10 mm |
| Package Level 1 Gross Weight | 0.042 kg |
| Package Level 1 EAN | 4013614404153 |
| Classifications | |
| eClass | V11.0 : 27242608 |
| ETIM 6 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| Object Classification Code | X |
| UNSPSC | 39121410 |
| Feature Name | Feature Value |
|---|---|
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard eGPRS (EF009703) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard LTE (EF009709) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 13 mm |
| Height (EF000040) | 10 mm |
| Depth (EF000049) | 170 mm |
