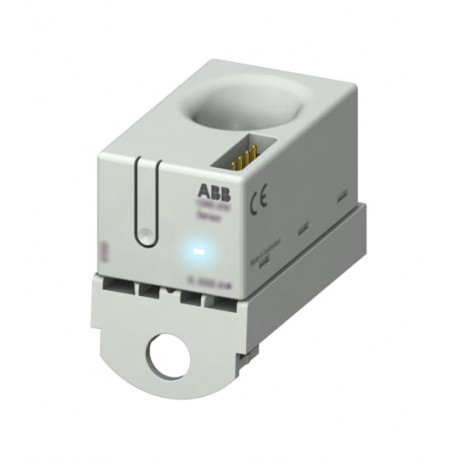

2CCA880138R0001 ABB Sensor 25mm, 40A AC, DC, TRMS, mounting for S800
2CCA880138R0001
880138
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
CMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb Sensor 25mm, 40A AC, DC, TRMS, mounting for S800 (part number 2CCA880138R0001) is a precision current measurement device designed to monitor electrical parameters in industrial distribution setups, feeding accurate true RMS data into compatible energy management units.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108470A0921
- Product Compatibility: SCU100 & SCU200
- Rated Primary Current (I pn ): 40 A
- Communication Interface: InSite bus(Flat cable)
- Accuracy: 0.5% FS
- Measuring Range: 0.1…20 A
- Number of Inputs: Primary 1
- Sensor Type: Solid-core (25 mm)
- Rated Operational Voltage: 690 V AC
- Frequency ( f ): Rated Current 50 Hz
- Power Consumption (@P cons ): 0.27 W
- RoHS Declaration: 9AKK108470A6924
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20241024
- REACH Declaration: 9AKK108467A9482
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A0921 |
| Technical | |
| Product Compatibility | SCU100 & SCU200 |
| Rated Primary Current (Ipn) | 40 A |
| Communication Interface | InSite bus(Flat cable) |
| Accuracy | 0.5% FS |
| Measuring Range | 0.1…20 A |
| Number of Inputs | Primary 1 |
| Sensor Type | Solid-core (25 mm) |
| Output | Other |
| Electrical | |
| Rated Operational Voltage | 690 V AC |
| 1500 V DC | |
| Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@Pcons) | 0.27 W |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A6924 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20241024 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 |
| Dimensions | |
| Product Net Width | 26.5 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 43 mm |
| Product Net Weight | 28 g |
| Bore Diameter | 15 mm |
| Engineering | |
| EPLAN Data | 9AAC181184_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 83 g |
| E-Number (Finland) | 6719063 |
| E-Number (Norway) | 8002523 |
| Certificates and Declarations | |
| Declaration | CE |
| REACH | |
| RoHS | |
| Declaration of Conformity - CE | 2CCC005106D0201 |
| Installation | |
| Instructions and Manuals | 9AKK106930A6241 |
| Mounting Type | Surface Mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC481003C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| UNSPSC | 41111928 |
| eClass | V11.0 : 27210123 |
| IDEA Granular Category Code (IGCC) | 6160 >> Current sensors |
| Object Classification Code | P |
