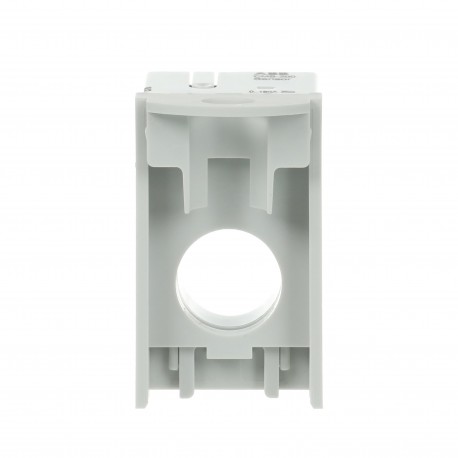

ABB 2CCA880136R0001 2CCA880136R0001 ABB Sensor 25mm, 160A AC, DC, TRMS, mounting for S800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCA880136R0001 ABB Sensor 25mm, 160A AC, DC, TRMS, mounting for S800

2CCA880136R0001

880136

ABB

1 Pcs.

Sensor 25mm, 160A AC, DC, TRMS, mounting for S800 Sensor 160A CMS-200S8 CMS-200S8 Sensor

Automation > Accessories/spare parts for low-voltage switch technology
CMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a precision current monitoring device, the 2CCA880136R0001 ABB Sensor 25mm, 160A AC, DC, TRMS, mounting for S800 is engineered to capture accurate electrical measurements across power circuits. Current sensors are extensively implemented in energy management and sub-metering architectures to track live current flow and feed data into monitoring controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108470A0921
  • Product Compatibility: SCU100 & SCU200
  • Rated Primary Current (I pn ): 160 A
  • Communication Interface: InSite bus(Flat cable)
  • Accuracy: 0.5% FS
  • Measuring Range: 0.1…80 A
  • Number of Inputs: Primary 1
  • Sensor Type: Solid-core (25 mm)
  • Rated Operational Voltage: 690 V AC
  • Frequency ( f ): Rated Current 50 Hz
  • Power Consumption (@P cons ): 0.27 W
  • RoHS Declaration: 9AKK108470A6924
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20241024
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108470A0921
Technical
Product CompatibilitySCU100 & SCU200
Rated Primary Current (Ipn)160 A
Communication InterfaceInSite bus(Flat cable)
Accuracy0.5% FS
Measuring Range0.1…80 A
Number of InputsPrimary 1
Sensor TypeSolid-core (25 mm)
OutputOther
Electrical
Rated Operational Voltage690 V AC
1500 V DC
Frequency (f)Rated Current 50 Hz
Power Consumption (@Pcons)0.27 W
Material Compliance
RoHS Declaration9AKK108470A6924
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20241024
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -25 ... 70 °C
Environmental Information2CCC481001D0202
Dimensions
Product Net Width26.5 mm
Product Net Height26.5 mm
Product Net Depth / Length43 mm
Product Net Weight28 g
Bore Diameter15 mm
Engineering
EPLAN Data9AAC181184_EPLAN
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight83 g
E-Number (Finland)6719061
E-Number (Norway)8002521
Certificates and Declarations
DeclarationCE
REACH
RoHS
Declaration of Conformity - CE2CCC005106D0201
Installation
Instructions and Manuals9AKK106930A6241
Mounting TypeSurface Mounting
Popular Downloads
Data Sheet, Technical Information2CCC481003C0201
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
UNSPSC41111928
eClassV11.0 : 27210123
IDEA Granular Category Code (IGCC)6160 >> Current sensors
Object Classification CodeP
