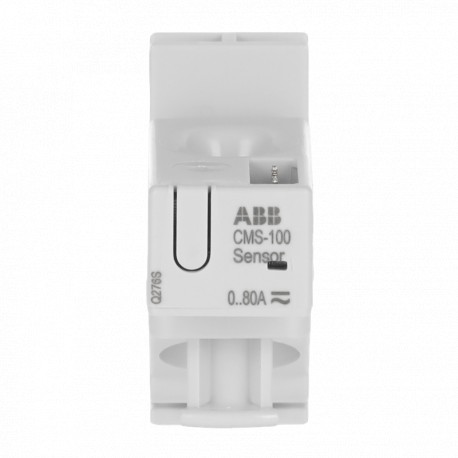

2CCA880128R0001 ABB Sensor 18mm, 80A AC, DC, TRMS, mounting for DIN-Rail
2CCA880128R0001
880128
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
CMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for electrical measurement tasks, the Abb 2CCA880128R0001 ABB Sensor 18mm, 80A AC, DC, TRMS, mounting for DIN-Rail accurately tracks current flow in control cabinets. Solid-core current sensors supply high-precision input data for sub-metering and energy auditing networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- EcoSolutions Profile: 9AKK108472A0173
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 52.47 %
- Sustainable Material Content in Packaging (wt. %): FSC Mix Cardboard - 72.29 %
- Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
- End Of Life Disassembling Instructions: 9AKK108470A1389
- Environmental Product Declaration - EPD: 9AKK108470A0921
- Product Compatibility: SCU100 & SCU200
- Rated Primary Current (I pn ): 80 A
- Communication Interface: InSite bus(Flat cable)
- Accuracy: 0.5% FS
- Measuring Range: 0.1…80 A
- Number of Inputs: Primary 1
- Sensor Type: Solid-core (18 mm)
- Rated Operational Voltage: 690 V AC
- Frequency ( f ): Rated Current 50 Hz
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108472A0173 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 52.47 % |
| Sustainable Material Content in Packaging (wt. %) | FSC Mix Cardboard - 72.29 % |
| FSC 100% Paper - 27.71 % | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1389 |
| Environmental Product Declaration - EPD | 9AKK108470A0921 |
| Technical | |
| Product Compatibility | SCU100 & SCU200 |
| Rated Primary Current (Ipn) | 80 A |
| Communication Interface | InSite bus(Flat cable) |
| Accuracy | 0.5% FS |
| Measuring Range | 0.1…80 A |
| Number of Inputs | Primary 1 |
| Sensor Type | Solid-core (18 mm) |
| Electrical | |
| Rated Operational Voltage | 690 V AC |
| 1500 V DC | |
| Frequency (f) | Rated Current 50 Hz |
| Power Consumption (@Pcons) | 0.27 W |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A6924 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20241024 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 70 °C |
| Environmental Information | 2CCC481001D0202 |
| Dimensions | |
| Product Net Width | 17.4 mm |
| Product Net Height | 43.2 mm |
| Product Net Depth / Length | 51.5 mm |
| Product Net Weight | 15 g |
| Bore Diameter | 10 mm |
| Engineering | |
| EPLAN Data | 9AAC181184_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 83 g |
| E-Number (Finland) | 6719055 |
| E-Number (Norway) | 8002515 |
| Certificates and Declarations | |
| Declaration | CE |
| REACH | |
| RoHS | |
| Declaration of Conformity - CE | 2CCC005106D0201 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 9AKK106930A6241 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC481003C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| UNSPSC | 41111928 |
| eClass | V11.0 : 27210123 |
| IDEA Granular Category Code (IGCC) | 6160 >> Current sensors |
| Object Classification Code | P |
