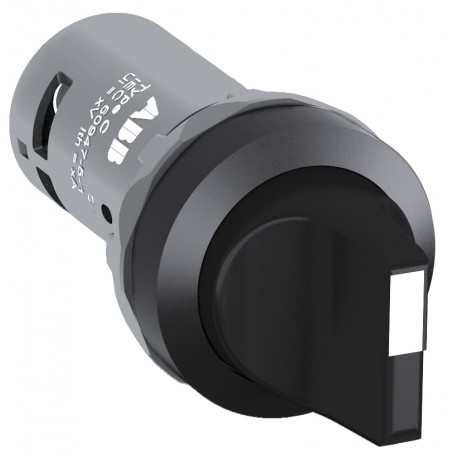

ABB 1SFA619202R1076 1SFA619202R1076 ABB SELECTOR SWITCH C2SS3-10B-11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA619202R1076 ABB SELECTOR SWITCH C2SS3-10B-11

1SFA619202R1076

619202

ABB

1 Pcs.

SELECTOR SWITCH#C2SS3-10B-11 SELEC.2 POS. MOM. CB, 1NA+1NC, N C2SS3-10B-11 Selector Switch

Automation > Selector switch, complete
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width0.03 m
Product Net Height0.03 m
Product Net Depth / Length0.072 m
Product Net Weight0.024 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorBlack
Actuator TypeShort handle
Bezel MaterialPlastic
IlluminationNon-illuminated
FunctionMomentary
Sub-Function2-position
Spring Return FromC to B
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree3
Rated Insulation Voltage (Ui)300 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Frequency (f)50 / 60 Hz
Rated Operational Voltage24 ... 300 V
Maximum 300 V
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie)(240 V) 2 A
(220 / 240 V) 2 A
Power LossMaximum 5 W
Mechanical Durability0.5 million
Connecting CapacityFlexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Terminal TypeScrew Terminals
Tightening Torque0.8 N·m
Wire Stripping Length6 mm
Technical UL/CSA
Connecting Capacity UL/CSA1x 22...14 AWG
2x 22...14 AWG
Environmental
Degree of ProtectionFront IP66
Front IP67
Front IP69K
Terminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCQC_CN_CN50749
CQC CertificateCQC2003010305054693
cURus CertificateUL_E496500-20171020
Declaration of Conformity - CCC2020980305001187
Declaration of Conformity - CE2CMT2015-005451
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate9AKK107046A3749
EAC CertificateRU C-CN.ME77.B.00587/20
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width0.235 m
Package Level 1 Depth / Length0.125 m
Package Level 1 Height0.035 m
Package Level 1 Gross Weight0.24 kg
Package Level 1 EAN7320500246399
External Classifications and Standards
Object Classification CodeS
ETIM 6EC001029 - Selector switch, complete
ETIM 7EC001029 - Selector switch, complete
ETIM 8EC001029 - Selector switch, complete
eClassV11.0 : 27371243
UNSPSC39122217
IDEA Granular Category Code (IGCC)5215 >> Selector Switch Complete Assemblies
E-Number (Finland)2312895
E-Number (Norway)4373400
E-Number (Sweden)3711304

ETIM for 1SFA619202R1076 Low-voltage industrial controls and switchgear (EC001029)
Feature Name Feature Value
Number of switch positions (EF000231) 2
Type of control element (EF006976) Long turning handle
Suitable for lighting (EF001142) No
With light source (EF005905) No
Colour button (EF000190) Black
Hole diameter (EF000079) 22 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) No
Spring-return (EF001407) Yes
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) Other
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 0
Type of electric connection (EF003961) Screw connection
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
