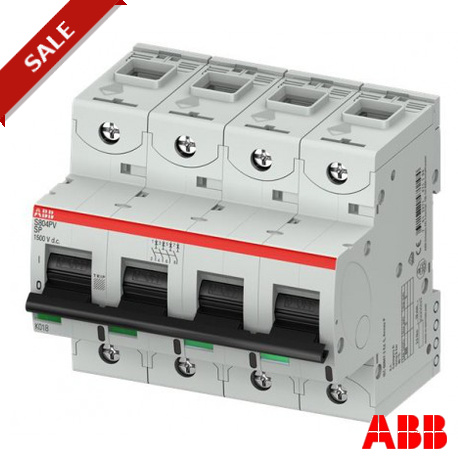

2CCF019633R0001 ABB S804PV-SP125 High Performance MCB
2CCF019633R0001
019633
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb S804PV-SP125 High Performance MCB provides specialized circuit protection designed to handle direct current applications safely and efficiently. High performance miniature circuit breakers of this type are frequently deployed in photovoltaic systems and specialized DC networks to isolate faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Data Sheet, Technical Information: 2CCC413003C0208
- Standards: IEC/EN 60947-2
- Number of Poles: 2
- Tripping Characteristic: B
- Rated Operational Voltage: 800 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): 800 V DC
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Environmental Information: 2CCY413207D0202
- Instructions and Manuals: 2CCC413016M0007
- RoHS Information: 2CCC413008D0206
- Product Net Width: 106 mm
- Product Net Depth: 82.5 mm
- Product Net Height: 95 mm
- Product Net Weight: 0.98 kg
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362020
More info
▲The S802PV-S10 is a 4-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 125 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1500V. It can be used for voltages up to 1500V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-S10 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-S10 more comfortable. Due to the fast arc extinction of S802PV-S10 your application will be secured.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362020
Popular Downloads
- Data Sheet, Technical Information:
- 2CCC413003C0208
Dimensions
- Product Net Width:
- 106mm
- Product Net Depth:
- 82.5mm
- Product Net Height:
- 95mm
- Product Net Weight:
- 0.98kg
Technical
- Standards:
- IEC/EN 60947-2
- Number of Poles:
- 2
- Tripping Characteristic:
- B
- Rated Operational Voltage:
- 800 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- 800 V DC
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC413035D0601
- Environmental Information:
- 2CCY413207D0202
- Instructions and Manuals:
- 2CCC413016M0007
- RoHS Information:
- 2CCC413008D0206
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 105 mm
- Package Level 1 Length:
- 111 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Gross Weight:
- 1010 g
- Package Level 1 EAN:
- 7612271471910
Classifications
- Object Classification Code:
- F
- ETIM 4:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 5:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 6:
- EC000042 - Miniature circuit breaker (MCB)
