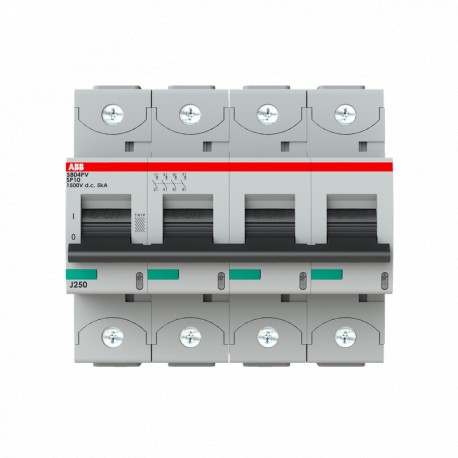

2CCF019622R0001 ABB S804PV-SP10 High Performance MCB
2CCF019622R0001
019622
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb S804PV-SP10 high performance MCB functions as a specialized circuit protector tailored for photovoltaic and direct current installations. These miniature circuit breakers are deployed in solar energy systems and high-voltage DC networks to safely isolate electrical faults and prevent equipment damage.
Pricing, inventory availability, and order lead times are confirmed per enquiry through a direct RFQ.
- Data Sheet, Technical Information: 2CCC413003C0208
- Standards: IEC/EN 60947-2
- Number of Poles: 4
- Tripping Characteristic: B
- Rated Operational Voltage: 1500 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): 1500 V DC
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Environmental Information: 2CCY413207D0202
- Instructions and Manuals: 2CCC413016M0007
- RoHS Information: 2CCC413008D0206
- Product Net Width: 106 mm
- Product Net Depth: 82.5 mm
- Product Net Height: 95 mm
- Product Net Weight: 0.98 kg
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362020
More info
▲The S804PV-S10 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1500V. It can be used for voltages up to 1500V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804PV-S10 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804PV-S10 more comfortable. Due to the fast arc extinction of S804PV-S10 your application will be secured.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362020
Popular Downloads
- Data Sheet, Technical Information:
- 2CCC413003C0208
Dimensions
- Product Net Width:
- 106mm
- Product Net Depth:
- 82.5mm
- Product Net Height:
- 95mm
- Product Net Weight:
- 0.98kg
Technical
- Standards:
- IEC/EN 60947-2
- Number of Poles:
- 4
- Tripping Characteristic:
- B
- Rated Operational Voltage:
- 1500 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- 1500 V DC
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC413035D0601
- Environmental Information:
- 2CCY413207D0202
- Instructions and Manuals:
- 2CCC413016M0007
- RoHS Information:
- 2CCC413008D0206
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 105 mm
- Package Level 1 Length:
- 111 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Gross Weight:
- 1010 g
- Package Level 1 EAN:
- 7612271471699
Classifications
- Object Classification Code:
- F
- ETIM 4:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 5:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 6:
- EC000042 - Miniature circuit breaker (MCB)
