ABB S804C-K80 S804C-K80 2CCS884001R0627 ABB S804C-K80 High Performance Circuit Breaker View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S804C-K80 2CCS884001R0627 ABB S804C-K80 High Performance Circuit Breaker

S804C-K80

2CCS884001R0627

ABB

1 Pcs.

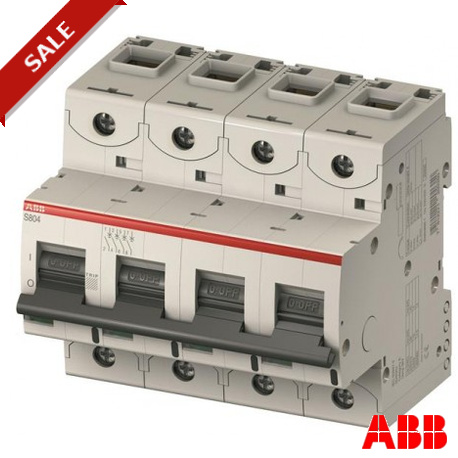

S804C-K80 High Performance Circuit Breaker Int.aut. S804C-K80 4p 80A K 25kA

Automation > Miniature circuit breaker (MCB)
S800C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A robust industrial setup utilizes the Abb S804C-K80 high performance circuit breaker to automatically isolate circuits experiencing severe overcurrents or hazardous short circuits. Protection devices of this type are indispensable in manufacturing facilities and automation panels for maintaining uninterrupted operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
  • Resistance to Shock acc. to IEC 60068-2-27: 5 g 30 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6: 2 - 13.2 Hz / 1mm 13.2 - 100Hz / 0.7g with load 100% x Ie
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Standards: IEC/EN 60947-2 IEC/EN 60898-1
  • Number of Poles: 4
  • Tripping Characteristic: K
  • Rated Current (I n ): 80 A
  • Rated Operational Voltage: 254/440 V
  • Power Loss: at Rated Operating Conditions per Pole 6.4 W
  • Rated Insulation Voltage (U i ): 500 V AC
  • Operational Voltage: Maximum 230/400 V AC Minimum 12 V AC
  • Rated Frequency (f): 50 / 60 Hz
  • Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (240 / 415 V AC) 25 kA (254 / 440 V AC) 15 kA (125 V DC) 10 kA
  • Rated Service Short-Circuit Breaking Capacity (I cs ): (240 / 415 V AC) 18 kA (254 / 440 V AC) 10 kA (125 V DC) 10 kA
  • Energy Limiting Class: 3

More info

▲

The S804C-K80 is a 4-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 80 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804C-K80 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804C-K80 more comfortable. Due to the fast arc extinction of S804C-K80 your application will be secured.

Ordering

  • EAN:
    7612271213671
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362020

Dimensions

  • Product Net Width:
    106mm
  • Product Net Depth:
    82.5mm
  • Product Net Height:
    95mm
  • Product Net Weight:
    0.98kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    105 mm
  • Package Level 1 Length:
    111 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Gross Weight:
    1.01 kg
  • Package Level 1 EAN:
    7612271213671

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +60 °C
    Storage -40 ... +70 °C
  • Resistance to Shock acc. to IEC 60068-2-27:
    5 g
    30 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    2 - 13.2 Hz / 1mm
    13.2 - 100Hz / 0.7g
    with load 100% x Ie
  • Environmental Conditions:
    Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle
    Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96%
    Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100%
    Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C
    Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical

  • Standards:
    IEC/EN 60947-2 IEC/EN 60898-1
  • Number of Poles:
    4
  • Tripping Characteristic:
    K
  • Rated Current (In):
    80 A
  • Rated Operational Voltage:
    254/440 V
  • Power Loss:
    at Rated Operating Conditions per Pole 6.4 W
  • Rated Insulation Voltage (Ui):
    500 V AC
  • Operational Voltage:
    Maximum 230/400 V AC
    Minimum 12 V AC
  • Rated Frequency (f):
    50 / 60 Hz
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (240 / 415 V AC) 25 kA
    (254 / 440 V AC) 15 kA
    (125 V DC) 10 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (240 / 415 V AC) 18 kA
    (254 / 440 V AC) 10 kA
    (125 V DC) 10 kA
  • Energy Limiting Class:
    3
  • Overvoltage Category:
    IV
  • Pollution Degree:
    3
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Housing Material:
    Insulation group I, RAL 7035
  • Contact Position Indication:
    ON / OFF / TRIP
  • Degree of Protection:
    acc. to IEC 60529 IP20
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captive screw
  • Electrical Endurance:
    6000 cycle
  • Mechanical Endurance:
    4000 cycle
  • Terminal Type:
    Screw Terminals
  • Connecting Capacity:
    Stranded 1 ... 50 mm²
    Flexible 1 …70 mm²
  • Tightening Torque:
    3.5 N·m
    31 in·lb
  • Recommended Screw Driver:
    Pozidriv 2
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000042 - Miniature circuit breaker (MCB)
  • ETIM 5:
    EC000042 - Miniature circuit breaker (MCB)
  • Object Classification Code:
    F

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
