View larger

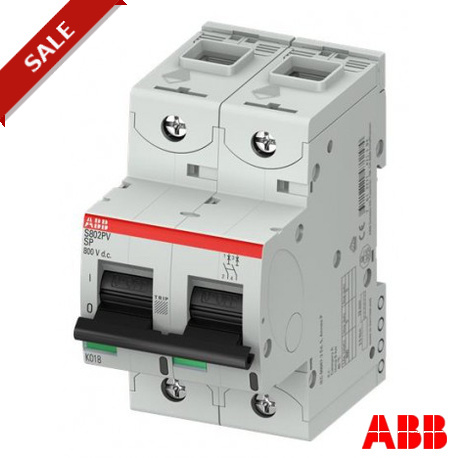

2CCF019608R0001 ABB S802PV-SP125 High Performance MCB
2CCF019608R0001
019608
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The S802PV-SP125 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 125 A. It is a current limiting device with a maximum breaking capacity of 5kA at 800V. It can be used for voltages up to 800V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-SP125 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-SP125 more comfortable. Due to the fast arc extinction of S802PV-SP125 your application will be secured.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362020
Popular Downloads
- Data Sheet, Technical Information:
- 2CCC413003C0208
Dimensions
- Product Net Width:
- 54mm
- Product Net Depth:
- 82.5mm
- Product Net Height:
- 95mm
- Product Net Weight:
- 0.735kg
Technical
- Standards:
- IEC/EN 60947-2
- Number of Poles:
- 2
- Tripping Characteristic:
- B
- Rated Operational Voltage:
- 800 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- 800 V DC
Environmental
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC413035D0601
- Environmental Information:
- 2CCY413207D0202
- Instructions and Manuals:
- 2CCC413016M0017
- RoHS Information:
- 2CCC413008D0206
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 105 mm
- Package Level 1 Length:
- 60 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Gross Weight:
- 510 g
- Package Level 1 EAN:
- 7612271471415
Classifications
- Object Classification Code:
- F
- ETIM 4:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 5:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 6:
- EC000042 - Miniature circuit breaker (MCB)
