S802N-B80 2CCS892001R0805 ABB S802N-B80 High Performance Circuit Breaker
S802N-B80
2CCS892001R0805
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
S800N
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb S802N-B80 high performance circuit breaker acts as an essential safety component for complex electrical distribution networks. Industrial facilities rely on these robust switching devices to isolate power automatically when excessive current flows through the circuit, preventing equipment failure.
Commercial pricing, stock status, and delivery lead times are confirmed per enquiry through our RFQ service.
- Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
- Resistance to Shock acc. to IEC 60068-2-27: 5 g 30 ms
- Resistance to Vibrations acc. to IEC 60068-2-6: 2 - 13.2 Hz / 1mm 13.2 - 100Hz / 0.7g with load 100% x Ie
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Standards: IEC/EN 60947-2 IEC/EN 60898-1
- Number of Poles: 2
- Tripping Characteristic: B
- Rated Current (I n ): 80 A
- Rated Operational Voltage: 400/690 V AC 250 V DC
- Power Loss: at Rated Operating Conditions per Pole 6.4 W
- Rated Insulation Voltage (U i ): 690 V AC
- Operational Voltage: Maximum 230/400 V AC Minimum 12 V AC
- Rated Frequency (f): 50 / 60 Hz
- Rated Short-Circuit Capacity (I cn ): (230 / 400 V AC) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (240 / 415 V AC) 36 kA (254 / 440 V AC) 20 kA (400 / 690 V AC) 4.5 kA (125 V DC) 20 kA
- Rated Service Short-Circuit Breaking Capacity (I cs ): (240 / 415 V AC) 30 kA (254 / 440 V AC) 15 kA (400 / 690 V AC) 3 kA (125 V DC) 20 kA
More info

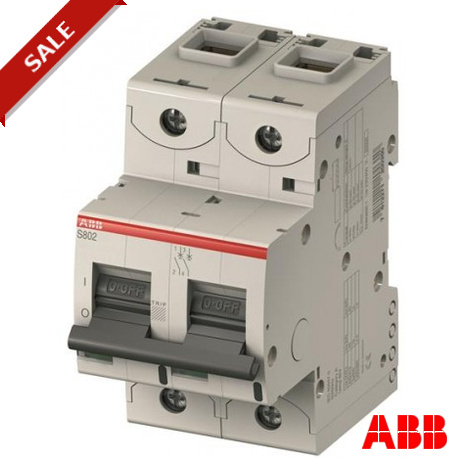

▲The S802N-B80 is a 2-pole High Performance Circuit breaker with B-characteristic, with cage terminal and a rated current of 80 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802N-B80 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802N-B80 more comfortable. Due to the fast arc extinction of S802N-B80 your application will be secured.
Ordering
- EAN:
- 7612271204013
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362020
Dimensions
- Product Net Width:
- 54mm
- Product Net Depth:
- 82.5mm
- Product Net Height:
- 95mm
- Product Net Weight:
- 0.49kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 105 mm
- Package Level 1 Length:
- 60 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Gross Weight:
- 0.51 kg
- Package Level 1 EAN:
- 7612271204013
- Package Level 2 Units:
- 1
Environmental
- Ambient Air Temperature:
- Operation -25 ... +60 °C
Storage -40 ... +70 °C
- Resistance to Shock acc. to IEC 60068-2-27:
- 5 g
30 ms
- Resistance to Vibrations acc. to IEC 60068-2-6:
- 2 - 13.2 Hz / 1mm
13.2 - 100Hz / 0.7g
with load 100% x Ie
- Environmental Conditions:
- Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle
Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96%
Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100%
Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C
Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical
- Standards:
- IEC/EN 60947-2 IEC/EN 60898-1
- Number of Poles:
- 2
- Tripping Characteristic:
- B
- Rated Current (In):
- 80 A
- Rated Operational Voltage:
- 400/690 V AC
250 V DC
- Power Loss:
- at Rated Operating Conditions per Pole 6.4 W
- Rated Insulation Voltage (Ui):
- 690 V AC
- Operational Voltage:
- Maximum 230/400 V AC
Minimum 12 V AC
- Rated Frequency (f):
- 50 / 60 Hz
- Rated Short-Circuit Capacity (Icn):
- (230 / 400 V AC) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (240 / 415 V AC) 36 kA
(254 / 440 V AC) 20 kA
(400 / 690 V AC) 4.5 kA
(125 V DC) 20 kA
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (240 / 415 V AC) 30 kA
(254 / 440 V AC) 15 kA
(400 / 690 V AC) 3 kA
(125 V DC) 20 kA
- Energy Limiting Class:
- 3
- Overvoltage Category:
- IV
- Pollution Degree:
- 3
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Housing Material:
- Insulation group I, RAL 7035
- Contact Position Indication:
- ON / OFF / TRIP
- Degree of Protection:
- acc. to IEC 60529 IP20
- Remarks:
- Connection from top and bottom
Connecting with CU only
IP40 in enclosure with cover
Cage terminal with captive screw
- Electrical Endurance:
- 6000 cycle
- Mechanical Endurance:
- 4000 cycle
- Terminal Type:
- Screw Terminals
- Connecting Capacity:
- Stranded 1 ... 50 mm²
Flexible 1 …70 mm²
- Tightening Torque:
- 3.5 N·m
31 in·lb
- Recommended Screw Driver:
- Pozidriv 2
- Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position:
- Any
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC413016D060
- RoHS Information:
- 2CCC413008D0204
Classifications
- ETIM 4:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 5:
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code:
- F
