S801B-K80 2CCS811001R0627 ABB S801B-K80 High Performance Circuit Breaker
S801B-K80
2CCS811001R0627
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
S800C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb S801B-K80 High Performance Circuit Breaker is designed to protect industrial electrical circuits from excessive current draws and potential fault conditions. Single-pole protective devices are essential in automation control panels for isolating specific branches during maintenance or overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Standards: IEC/EN 60947-2 IEC/EN 60898-1
- Number of Poles: 1
- Tripping Characteristic: K
- Rated Current (I n ): 80 A
- Rated Operational Voltage: 230/400 V AC 75 V DC
- Power Loss: at Rated Operating Conditions per Pole 6.4 W
- Rated Insulation Voltage (U i ): 440 V AC
- Rated Frequency (f): 50 / 60 Hz
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (230 / 400 V AC) 16 kA
- Rated Service Short-Circuit Breaking Capacity (I cs ): (230 / 400 V AC) 10 kA
- Overvoltage Category: III
- Pollution Degree: 3
- Rated Impulse Withstand Voltage (U imp ): 4 kV
- Housing Material: Insulation group I, RAL 7035
More info

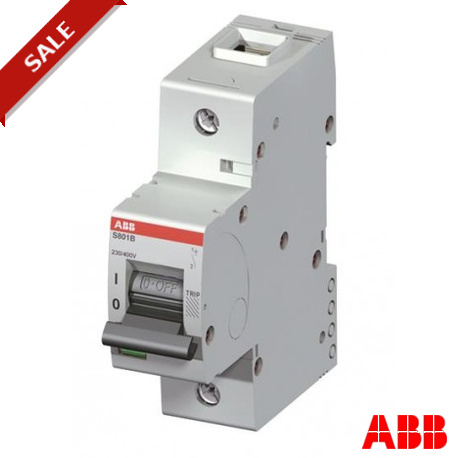

▲The S801B-K80 is a 1-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 80 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801B-K80 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensIIIe range of accessory makes the use of S801B-K80 more comfortable. Due to the fast arc extinction of S801B-K80 your application will be secured.
Ordering
- EAN:
- 7612271415815
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362020
Dimensions
- Product Net Width:
- 27mm
- Product Net Depth:
- 82.5mm
- Product Net Height:
- 95mm
- Product Net Weight:
- 0.24kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 105 mm
- Package Level 1 Length:
- 33 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Gross Weight:
- 0.26 kg
- Package Level 1 EAN:
- 7612271415815
Environmental
- Ambient Air Temperature:
- Operation -25 ... +60 °C
Storage -40 ... +70 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical
- Standards:
- IEC/EN 60947-2 IEC/EN 60898-1
- Number of Poles:
- 1
- Tripping Characteristic:
- K
- Rated Current (In):
- 80 A
- Rated Operational Voltage:
- 230/400 V AC
75 V DC
- Power Loss:
- at Rated Operating Conditions per Pole 6.4 W
- Rated Insulation Voltage (Ui):
- 440 V AC
- Rated Frequency (f):
- 50 / 60 Hz
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (230 / 400 V AC) 16 kA
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (230 / 400 V AC) 10 kA
- Overvoltage Category:
- III
- Pollution Degree:
- 3
- Rated Impulse Withstand Voltage (Uimp):
- 4 kV
- Housing Material:
- Insulation group I, RAL 7035
- Contact Position Indication:
- ON / OFF / TRIP
- Degree of Protection:
- acc. to IEC 60529 IP20
- Remarks:
- Connection from top and bottom
Connecting with CU only
IP40 in enclosure with cover
Cage terminal with captIIIe screw
- Terminal Type:
- Screw Terminals
- Connecting Capacity:
- Flexible 1 ... 50 mm²
Flexible Stranded
1 …70 mm²
- Tightening Torque:
- 3.5 N·m
- Recommended Screw Driver:
- Pozidriv 2
- Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position:
- Any
