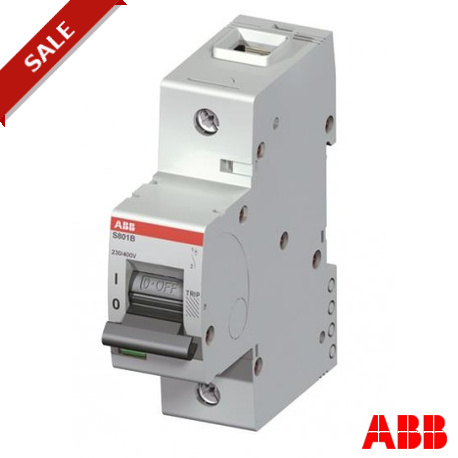

S801B-C100 2CCS811001R0824 ABB S801B-C100 High Performance Circuit Breaker
S801B-C100
2CCS811001R0824
ABB
1 Pcs.
Automation > Miniature circuit breaker (MCB)
S800C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manage power distribution loads securely utilizing the Abb S801B-C100 2CCS811001R0824 ABB S801B-C100 High Performance Circuit Breaker. Industrial facilities rely on these mechanical switching devices to isolate electrical circuits during fault conditions, protecting expensive automation hardware and personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Standards: IEC/EN 60947-2 IEC/EN 60898-1
- Number of Poles: 1
- Tripping Characteristic: C
- Rated Current (I n ): 100 A
- Rated Operational Voltage: 230/400 V AC 75 V DC
- Power Loss: at Rated Operating Conditions per Pole 8 W
- Rated Insulation Voltage (U i ): 440 V AC
- Rated Frequency (f): 50 / 60 Hz
- Rated Short-Circuit Capacity (I cn ): 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (230 / 400 V AC) 16 kA
- Rated Service Short-Circuit Breaking Capacity (I cs ): (230 / 400 V AC) 10 kA
- Overvoltage Category: III
- Pollution Degree: 3
- Rated Impulse Withstand Voltage (U imp ): 4 kV
More info
▲The S801B-C100 is a 1-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 100 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801B-C100 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801B-C100 more comfortable. Due to the fast arc extinction of S801B-C100 your application will be secured.
Ordering
- EAN:
- 7612271416423
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362020
Dimensions
- Product Net Width:
- 27mm
- Product Net Depth:
- 82.5mm
- Product Net Height:
- 95mm
- Product Net Weight:
- 0.24kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 105 mm
- Package Level 1 Length:
- 33 mm
- Package Level 1 Height:
- 99 mm
- Package Level 1 Gross Weight:
- 0.26 kg
- Package Level 1 EAN:
- 7612271416423
Environmental
- Ambient Air Temperature:
- Operation -25 ... +60 °C
Storage -40 ... +70 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical
- Standards:
- IEC/EN 60947-2 IEC/EN 60898-1
- Number of Poles:
- 1
- Tripping Characteristic:
- C
- Rated Current (In):
- 100 A
- Rated Operational Voltage:
- 230/400 V AC
75 V DC
- Power Loss:
- at Rated Operating Conditions per Pole 8 W
- Rated Insulation Voltage (Ui):
- 440 V AC
- Rated Frequency (f):
- 50 / 60 Hz
- Rated Short-Circuit Capacity (Icn):
- 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (230 / 400 V AC) 16 kA
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (230 / 400 V AC) 10 kA
- Overvoltage Category:
- III
- Pollution Degree:
- 3
- Rated Impulse Withstand Voltage (Uimp):
- 4 kV
- Housing Material:
- Insulation group I, RAL 7035
- Contact Position Indication:
- ON / OFF / TRIP
- Degree of Protection:
- acc. to IEC 60529 IP20
- Remarks:
- Connection from top and bottom
Connecting with CU only
IP40 in enclosure with cover
Cage terminal with captIIIe screw
- Terminal Type:
- Screw Terminals
- Connecting Capacity:
- Flexible 1 ... 50 mm²
Flexible Stranded
1 …70 mm²
- Tightening Torque:
- 3.5 N·m
- Recommended Screw Driver:
- Pozidriv 2
- Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position:
- Any
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 2CCC413016D060
- RoHS Information:
- 2CCC413008D0204
Classifications
- ETIM 4:
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 5:
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code:
- F
