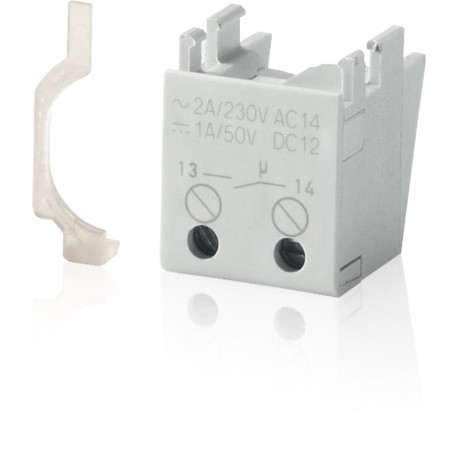

S2C-H10 2CDS200970R0002 ABB S2C-H10 Auxiliary Contact
S2C-H10
2CDS200970R0002
ABB
1 Pcs.
S2C-H10 - Auxiliary Contact
S2C-H10 1NA auxiliary for S200
S2C-H10 Bottom-fitting auxiliary contact 1NO
Automation > Auxiliary device for distribution board devices
Accessories range compact (DESTO)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An S2C-H10 2CDS200970R0002 ABB S2C-H10 Auxiliary Contact attaches to miniature circuit breakers to provide open/closed position indication for control system interlocking.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108468A9282
- Function: Auxiliary Contact
- Suitable For: S200
- Suitable for Product Class: Miniature Circuit Breaker
- Number of Auxiliary Contacts NC: 0
- Number of Auxiliary Contacts NO: 1
- Accessory Type: Auxiliary Contact
- Power Loss: 0.5 W
- Number of Auxiliary Contacts CO (SPDT): 0
- RoHS Declaration: 2CDK440030D2703
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20211028
- REACH Declaration: 9AKK107492A1906
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20251028
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A9282 |
| Technical | |
| Function | Auxiliary Contact |
| Suitable For | S200 |
| S200M | |
| S200MT | |
| S200MUC | |
| S200P | |
| S200S | |
| SD200 | |
| Suitable for Product Class | Miniature Circuit Breaker |
| Residual Current Device | |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Accessory Type | Auxiliary Contact |
| Electrical | |
| Power Loss | 0.5 W |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Material Compliance | |
| RoHS Declaration | 2CDK440030D2703 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211028 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Environmental Information | 2CDK400571D0201 |
| Dimensions | |
| Product Net Width | 17.4 mm |
| Product Net Height | 21.2 mm |
| Product Net Depth / Length | 23.1 mm |
| Product Net Weight | 0.008 kg |
| Engineering | |
| EPLAN Data | 9AAC179079_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.012 kg |
| E-Number (Sweden) | 2102505 |
| Replacement Product ID (NEW) | 2CDS200970R0032 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK400628D2701 |
| Installation | |
| Instructions and Manuals | GHS2007009P0008 |
| Mounting Position | bottom |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| UNSPSC | 39121614 |
| eClass | V11.0 : 27143502 |
| Standards | CSA 22.2 No. 235 |
| GB/T 14048.5 | |
| UL 1077 | |
