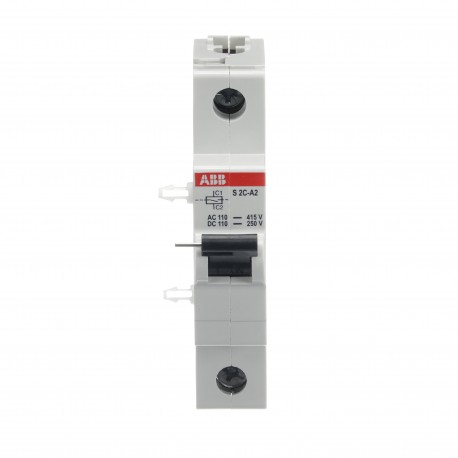

2CDS200909R0002 ABB S2C-A2 Shunt Trip
2CDS200909R0002
200909
ABB
1 Pcs.
Automation > Auxiliary device for distribution board devices
Accessories range compact (DESTO)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2CDS200909R0002 ABB S2C-A2 Shunt Trip enables remote tripping of modular circuit breakers when triggered by external control signals or safety interlocks. Shunt trips are vital hardware additions for implementing emergency shutdowns across complex machinery and power distribution grids.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function: Shunt Trip
- Suitable For: S200
- Suitable for Product Class: Miniature Circuit Breaker
- Power Loss: 0 W
- RoHS Declaration: 2CDK400627D2701
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20230502
- REACH Declaration: 9AKK107492A1906
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20251028
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- SCIP: 4906475e-2b37-45cb-918c-db295dd155a2 Germany
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- Product Net Width: 17.5 mm
- Product Net Height: 85 mm
More info
▲| Technical | |
|---|---|
| Function | Shunt Trip |
| Suitable For | S200 |
| S200M | |
| S200P | |
| S200S | |
| S200 MT | |
| S200 MUC | |
| S300P | |
| DS200AC | |
| DS200A | |
| DS200MAC | |
| DS200MA | |
| Suitable for Product Class | Miniature Circuit Breaker |
| Residual Current Device | |
| Electrical | |
| Power Loss | 0 W |
| Material Compliance | |
| RoHS Declaration | 2CDK400627D2701 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230502 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 4906475e-2b37-45cb-918c-db295dd155a2 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 17.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.133 kg |
| Engineering | |
| EPLAN Data | 9AAC179082_EPLAN |
| Ordering | |
| Package Level 1 Units | blister 1 piece |
| Package Level 1 Gross Weight | 0.138 kg |
| E-Number (Finland) | 3210838 |
| E-Number (Norway) | 1665767 |
| E-Number (Sweden) | 2102511 |
| Replacement Product ID (NEW) | 2CDS200982R0002 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK400627D2701 |
| Declaration of Conformity - UKCA | 9AKK108467A5488 |
| Installation | |
| Instructions and Manuals | GHS2007007P0005 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27143502 |
| IDEA Granular Category Code (IGCC) | 4879 >> Shunt release (for power circuit breaker) |
| Object Classification Code | K |
| Standards | CSA 22.2 No. 235 |
| UL 1077 | |
