ABB 1SAM201913R1103 1SAM201913R1103 ABB S1-M3-35 Power Infeed Block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SAM201913R1103 ABB S1-M3-35 Power Infeed Block

1SAM201913R1103

201913

ABB

1 Pcs.

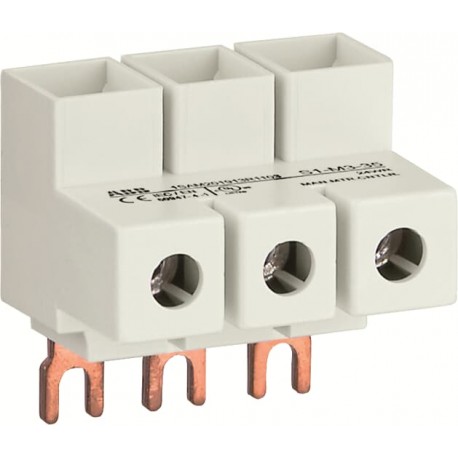

S1-M3-35 Power Infeed Block S1-M3-35 BLO. FOOD. P/MS116/32 S1-M3-35 3-phase power infeed block Flat, for MS116 / MS132, 35mm2, Type E

Automation > Rail terminal bar
Classic Range Mx325

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85369010
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals2CDC131011M6802
2CDC131034M6801
2CDC131022M6802
Instructions and Manuals (Part 3)1SBC100214C0202
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width45.5 mm
Product Net Height45.7 mm
Product Net Depth / Length35.3 mm
Product Net Weight0.06 kg
Technical
Rated Operational Voltage690 V AC
250 V DC
Rated Operational Current (Ie)100 A
Number of Poles3P
Degree of ProtectionIP20
Terminal TypeScrew Terminals
Connecting Capacity Main CircuitFlexible with Ferrule 1x 10 ... 35 mm²
Flexible with Insulated Ferrule 1x 10 ... 35 mm²
Flexible 1x 10 ... 35 mm²
Rigid 1x 10 ... 35 mm²
Tightening TorqueMain Circuit 4.5 N·m
Wire Stripping LengthMain Circuit 12 mm
Recommended Screw DriverHexgon SW4
StandardsIEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
RemarksUL/CSA Type E/F and IEC
Technical UL/CSA
Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
Connecting Capacity Main Circuit UL/CSAFlexible 1x 8-2 AWG
Stranded 1x 8-2 AWG
Tightening Torque UL/CSAMain Circuit 40 in·lb
Environmental
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -50 ... +80 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SAA963005-4502
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP48c3c873-43e3-42b4-a916-82117274faa6 Germany
Simplified SCIP7cd2c8e9-1bf6-458d-b22d-ccd5844b2e64 Germany
670e8e06-ec17-4720-97a4-b5c25e771eac Estonia
1824ef30-3806-4001-bb4d-c0afe8108383 Greece
1e28d9fb-4f4a-498c-9c65-0c63da2b1030 Bulgaria
9f056525-adc4-42b6-8a41-58427111d3ec Poland
9a043ec6-0dd7-4ed0-8ef0-da72ec15908b France
10e4ca55-1b7f-472b-986a-d65a4f778d36 Spain
7cac76b3-cf7d-475a-be38-2df9f9205e74 Germany
125c3ca9-a49e-44b7-83cf-5678ff5cccff France
396eb453-8d79-4497-8ae6-07ce42046707 Germany
8842d6a4-381c-4795-88f6-30754a2e9be5 Hungary
21edd8aa-23df-4fc0-9661-198aa38bea08 Sweden
49bedb4e-c0fa-4a72-8233-95f907d21097 Belgium
1a3b1dd8-d04d-4cb1-a904-a669f5e94b02 Belgium
d19c93b0-5c6b-4575-8a4b-a325db94991a Poland
db98fdab-91cf-49d2-8b8b-06800e8e47dd Norway
c5fdba5d-8d3c-4276-8a06-f3a6dcbc64bf Finland
f8715f25-1e9c-47d9-a9fa-b4215f8723bc Sweden
d5b0182b-3377-4744-9efb-b757eec958a4 Italy
300df123-5828-49a0-b70b-06e46589f57a Netherlands
7339914b-afac-4916-8db4-9db844f88928 Denmark
30a89350-e902-40d2-8f04-ddbaa7dcb4e4 Germany
5fa7c790-e6fc-4d78-b6a5-f7e08fd22497 Croatia
d170525c-1f3a-4de4-a1af-e17fcf3b1a85 Czech Republic
06a4ce0d-7074-4102-b3cd-a21a921d1a30 Poland
227001a9-bb72-456b-a34a-d9759d8fd9c3 Hungary
23e8702d-61f8-40d6-8754-8f29db92beef Portugal
Toxic Substances Control Act - TSCA2CMT2023-006539
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
cUL Certificate1SAA963001-1701
Declaration of Conformity - CE1SAD101100-3411
Declaration of Conformity - UKCA1SAD201100-3411
UL CertificateE121190-20000619
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width59 mm
Package Level 1 Depth / Length245 mm
Package Level 1 Height38 mm
Package Level 1 Gross Weight0.638 kg
Package Level 1 EAN4013614488221
External Classifications and Standards
Object Classification CodeX
ETIM 9EC000275 - Main line branch terminal
ETIM 10EC000275 - Main line branch terminal
eClassV11.0 : 27400603
UNSPSC39121117
IDEA Granular Category Code (IGCC)4378 >> Phase busbar
E-Number (Finland)3705960
E-Number (Norway)4364022
E-Number (Sweden)3112083

ETIM for 1SAM201913R1103 Power distribution systems (EC000275)
Feature Name Feature Value
Number of poles (EF001391) 3
Nominal current (EF000001) 100 A
Connection type (EF000124) Screwing
Mounting method (EF000003) Screw
Number of inputs (EF000318) 3
Number of outputs (EF000319) 3
Suitable for solid conductors (EF007816) Yes
Suitable for stranded conductors (EF007818) Yes
Suitable for fine strand conductors (EF007804) Yes
Suitable for fine strand conductors without cable end sleeve (EF016327) Yes
Suitable for extra fine-strand conductors (EF016328) Yes
Suitable for extra fine-strand conductors without cable end sleeve (EF016329) Yes
Conductor cross section, input (EF016330) 10 mm²
Conductor cross section, output (EF016331) 10 mm²
Conductor cross section, input AWG (EF016332) 2
Contact safe (EF004521) Yes
Height (EF000040) 45.7 mm
Width (EF000008) 45.5 mm
Depth (EF000049) 35.3 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
