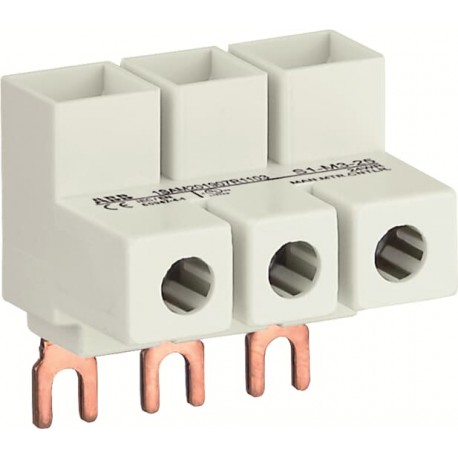

1SAM201907R1101 ABB S1-M1-25 Power Infeed Block
1SAM201907R1101
201907
ABB
1 Pcs.
S1-M1-25 Power Infeed Block
S1-M1-25 TERM. CONEX. P/MS116/32
S1-M1-25 3-phase power infeed block Flat, for MS116 / MS132, 25mm2
Automation > Rail terminal bar
Mx116 and Mx132
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131011M6802 |
| 2CDC131034M6801 | |
| 2CDC131022M6802 | |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAM200451F0001 |
| Dimensions | |
| Product Net Width | 44 mm |
| Product Net Height | 38 mm |
| Product Net Depth / Length | 25.5 mm |
| Product Net Weight | 0.038 kg |
| Technical | |
| Rated Operational Voltage | 690 V AC |
| 250 V DC | |
| Rated Operational Current (Ie) | 65 A |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 16 mm² |
| Flexible with Insulated Ferrule 1x 2.5 ... 16 mm² | |
| Flexible 1x 2.5 ... 16 mm² | |
| Rigid 1x 2.5 ... 25 mm² | |
| Tightening Torque | Main Circuit 2.5 N·m |
| Wire Stripping Length | Main Circuit 10 mm |
| Recommended Screw Driver | M3.5 |
| Pozidriv 2 | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Remarks | Flat |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 14-6 AWG |
| Stranded 1x 14-4 AWG | |
| Tightening Torque UL/CSA | Main Circuit 22 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -50 ... +80 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 21d519aa-de63-442f-a592-dda52e31e968 Germany |
| Simplified SCIP | eb9f47b0-68c1-45b2-b351-d2eb00efe685 Germany |
| 7b054a8b-e79f-4366-ab48-593699bd37ca Poland | |
| 09ddcdc0-1c53-4526-910b-8a0ad6d0f022 Norway | |
| f2c42888-bfb5-48e5-a33d-cf85db8c568b Finland | |
| 045ee9ca-767e-4bc5-b005-b58827f157fd Sweden | |
| 0402ac13-6a85-4682-a042-5119822e8b4c Italy | |
| 403a2642-b990-4a12-902a-82ebe5550a3d Netherlands | |
| d6faafc2-bd4d-4501-a593-97df77f22dd6 Estonia | |
| 35647fe2-21be-4d9d-baf0-455dd50dfe39 Greece | |
| ddb33066-c460-42ec-a2d6-0c9255f1a1dc Bulgaria | |
| 6dfd6bac-c666-450f-91a2-2ca1e20e9c28 Poland | |
| 20baeb18-8ce5-4b11-859e-914dcfb2eb0d France | |
| 70b3cc1d-36bb-465d-a065-a53888244bad Spain | |
| 26b35a3f-a243-4266-8718-6d806d4ef76f Germany | |
| 1dc08158-68e8-4453-a2c6-7469dc41b385 Denmark | |
| 9ea488dc-6fce-4140-9283-b964170f52f2 Germany | |
| 975e8a1b-b05c-461a-bc19-e8ddedfb3f5d Croatia | |
| c0a19c45-32b2-4c83-9529-2da02b34dcdc Czech Republic | |
| f6b5f56a-6e26-4f51-b89e-3e00c82c7fed Poland | |
| c95b752e-675e-4799-8609-2943ab2c1131 Hungary | |
| e05d06a6-a998-4cab-8977-1c9a7bfc1788 Portugal | |
| 2cfe2852-675d-4140-aa83-e3c3e5a0cdfb France | |
| e2aaec16-93a6-4fd6-af85-e832373ca76b Germany | |
| e2049358-d3e5-4fb7-9376-7c4e4fd913ef Hungary | |
| 64129593-8aab-43ec-9360-fae82988f475 Sweden | |
| 72043d3f-b3bc-4dda-9945-5c853d8b6a75 Belgium | |
| afddca7c-cf23-4d70-9b63-5ef63293d7cd Belgium | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 1SAA963001-1701 |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| UL Certificate | E121190-20000619 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 120 mm |
| Package Level 1 Height | 46 mm |
| Package Level 1 Gross Weight | 0.409 kg |
| Package Level 1 EAN | 4013614488184 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 9 | EC000275 - Main line branch terminal |
| ETIM 10 | EC000275 - Main line branch terminal |
| eClass | V11.0 : 27400603 |
| UNSPSC | 39121117 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| E-Number (Finland) | 3705939 |
| E-Number (Norway) | 4364012 |
| E-Number (Sweden) | 3111687 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Nominal current (EF000001) | 65 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Screw |
| Number of inputs (EF000318) | 3 |
| Number of outputs (EF000319) | 3 |
| Suitable for solid conductors (EF007816) | Yes |
| Suitable for stranded conductors (EF007818) | Yes |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | Yes |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | Yes |
| Conductor cross section, input (EF016330) | 2.5 mm² |
| Conductor cross section, output (EF016331) | 2.5 mm² |
| Conductor cross section, input AWG (EF016332) | 14 |
| Contact safe (EF004521) | Yes |
| Height (EF000040) | 38 mm |
| Width (EF000008) | 44 mm |
| Depth (EF000049) | 25.5 mm |
