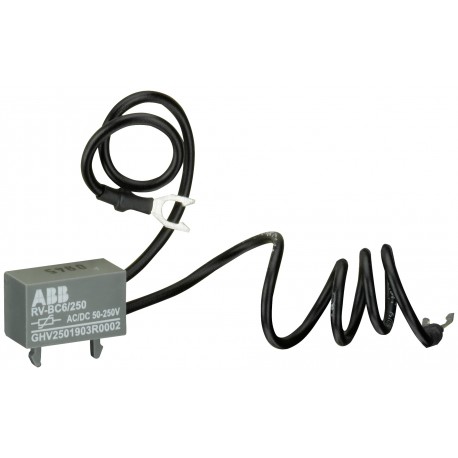

GHV2501903R0002 ABB RV-BC6/250 Surge Suppressor
GHV2501903R0002
2501903
ABB
1 Pcs.
Automation > Surge protection module
Minicontactors B6-B7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Surge Suppressor units such as the ABB GHV2501903R0002 are implemented in control cabinets to suppress high-voltage transients generated by inductive switching devices like contactors and relays. This hardware protects delicate automation components from voltage spikes, ensuring system longevity and uninterrupted operation in demanding industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 2CDC102006M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 21 mm
- Product Net Depth / Length: 12 mm
- Product Net Height: 11.5 mm
- Product Net Weight: 0.005 kg
- Standards: UL 60947-1
- Rated Frequency (f): Control Circuit DC
- Rated Insulation Voltage (U i ): 690 V
- Rated Control Circuit Voltage (U c ): DC Operation 50 ... 250 V DC
- Degree of Protection: IP20
- Terminal Type: Screw Terminals
- Suitable For: BC6
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC102006M6801 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 21 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 11.5 mm |
| Product Net Weight | 0.005 kg |
| Technical | |
| Standards | UL 60947-1 |
| UL 60947-4-1 | |
| Rated Frequency (f) | Control Circuit DC |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 50 ... 250 V DC |
| Degree of Protection | IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | BC6 |
| BC7 | |
| KC6 | |
| TBC7 | |
| TKC6 | |
| VBC6 | |
| VBC6A | |
| VBC7 | |
| VBC7A | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Surge Suppressor |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -40 ... +80 °C | |
| Maximum Operating Altitude Permissible | 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | NoCerNee |
| BV Certificate | NoCerNee |
| Declaration of Conformity - CE | 1SAD101100-3101 |
| Declaration of Conformity - UKCA | 1SAD201100-3101 |
| DNV Certificate | NoCerNee |
| GL Certificate | NoCerNee |
| LR Certificate | NoCerNee |
| RINA Certificate | NoCerNee |
| RMRS Certificate | NoCerNee |
| UL Certificate | E191658-19881208 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 5 mm |
| Package Level 1 Height | 185 mm |
| Package Level 1 Gross Weight | 0.08 kg |
| Package Level 1 EAN | 4013614027178 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 7 | EC000197 - Surge voltage protection |
| ETIM 8 | EC000683 - Surge protection module |
| ETIM 9 | EC000683 - Surge protection module |
| eClass | V11.0 : 27371010 |
| UNSPSC | 39121610 |
| IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers |
| E-Number (Finland) | 3709093 |
| E-Number (Norway) | 4188188 |
| E-Number (Sweden) | 3210692 |
