View larger
Images are for illustrative purposes only. Please refer to data sheet for details

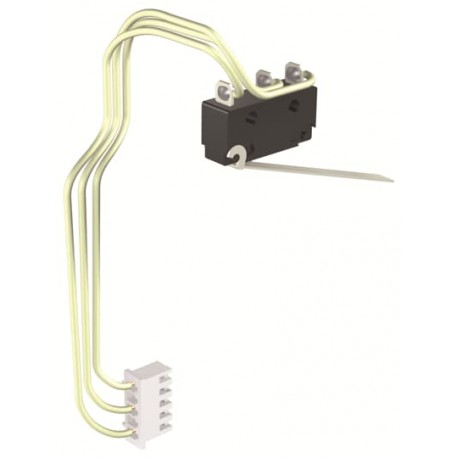

1SDA073770R1 ABB RTC 250VAC E1.2
1SDA073770R1
073770
ABB
1 Pcs.
RTC 250VAC E1.2
RTC READY TO CLOSE 250V-E1.2
RTC 250VAC E1.2-XT7M
Automation > Auxiliary contact block
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZE1RTC |
| EAN | 8015644777036 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 300 mm |
| Product Net Height | 50 mm |
| Product Net Depth / Length | 400 mm |
| Product Net Weight | 0.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 300 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Depth / Length | 400 mm |
| Package Level 1 Gross Weight | 0.2 kg |
| Package Level 1 EAN | 8015644777036 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7-XT7M, E1.2 |
| Suitable for Product Class | SACE Tmax XT, SACE Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Auxiliary Contacts CO (SPDT) | 1 |
| Order Multiple | 1 piece |
| Standards | IEC |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| 1SDC210100D0204 | |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH000999R0604 |
| External Classifications and Standards | |
| ETIM 9 | EC000041 - Auxiliary contact block |
| ETIM 10 | EC000041 - Auxiliary contact block |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Object Classification Code | Q |
| UNSPSC | 39121522 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371302 |
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Other |
| Lamp holder (EF000048) | None |
