1SDA051390R1 ABB RHL T1-2-3 KEY LOCK EQ.N2005 ROT.HANDLE2
1SDA051390R1
051390
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

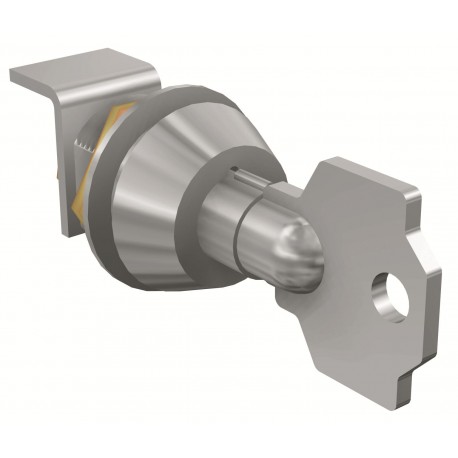

Abb 1SDA051390R1 ABB RHL T1-2-3 KEY LOCK EQ.N2005 ROT.HANDLE2 provides keyed security locking for compatible frame circuit breakers, preventing unauthorized operation in sensitive electrical environments. Key interlock systems are standard additions in commercial and industrial switchboards to enforce strict operational sequences and safety interlocks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RoHS Declaration: 1SDL000200R0001
- Environmental Information: 1SDL000140R0
- EAN: 8015644518110
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 150 mm
- Package Level 1 Height: 20 mm
- Package Level 1 Depth / Length: 180 mm
- Package Level 1 Gross Weight: 0.1 kg
- Package Level 1 EAN: 8015644518110
- Product Main Type: Accessories for Tmax T
- Product Name: Accessory
- Product Type: ACC
- Suitable For: T1, T2, T3
More info
▲| Material Compliance | |
|---|---|
| RoHS Declaration | 1SDL000200R0001 |
| Environmental | |
| Environmental Information | 1SDL000140R0 |
| Ordering | |
| EAN | 8015644518110 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Depth / Length | 180 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 8015644518110 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | ACC |
| Suitable For | T1, T2, T3 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Device | T1-T2-T3 |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | ITSCE-RH0011619 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
