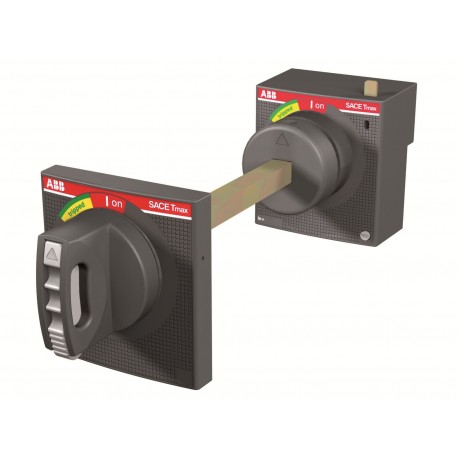

ABB 1SDA069055R1 1SDA069055R1 ABB RHE XT2-XT4 F/P STAND. RETURNED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA069055R1 ABB RHE XT2-XT4 F/P STAND. RETURNED

1SDA069055R1

069055

ABB

1 Pcs.

RHE XT2-XT4 F/P STAND. RETURNED RHE FORWARDED F/P - XT2-XT4

Automation > Handle for power circuit breaker
Accessories XT1-4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 1SDA069055R1 RHE XT2-XT4 F/P STAND. RETURNED is a rotary handle mechanism designed for operating molded case circuit breakers from the outside of switchgear enclosures. Operators use these assemblies to safely switch power feeds while keeping the electrical compartment securely closed. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTCRHESTFP
  • E-Number (Finland): 3638704
  • E-Number (Norway): 4384956
  • E-Number (Sweden): 3182057
  • EAN: 8015644697518
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.46 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 118 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTCRHESTFP
E-Number (Finland)3638704
E-Number (Norway)4384956
E-Number (Sweden)3182057
EAN8015644697518
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.46 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width118 mm
Package Level 1 Height120 mm
Package Level 1 Depth / Length487 mm
Package Level 1 Gross Weight0.484 kg
Package Level 1 EAN8015644697518
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT2, XT4
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0605
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
Object Classification CodeQ
UNSPSC31162801
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370414
