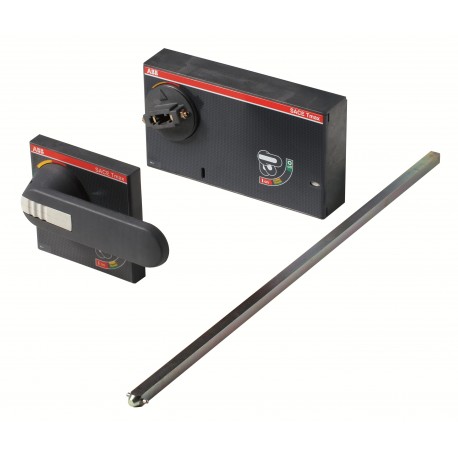

ABB 1SDA062122R1 1SDA062122R1 ABB RHE T7 F/W NORM. RETURNED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062122R1 ABB RHE T7 F/W NORM. RETURNED

1SDA062122R1

062122

ABB

1 Pcs.

RHE T7 F/W NORM. RETURNED RHE FORWARDED F/W - T7 COMMAND

Automation > Handle for power circuit breaker
Accessories T7-X1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 1SDA062122R1 rotary handle mechanism is deployed with heavy-duty circuit protection systems to enable external door-interlocked switching of high-capacity breakers. Operating mechanisms of this classification allow technicians to safely actuate panel-mounted devices without opening live enclosures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT7VD
  • E-Number (Norway): 4383591
  • EAN: 8015644646615
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1.234 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 160 mm
  • Package Level 1 Height: 100 mm
  • Package Level 1 Depth / Length: 500 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT7VD
E-Number (Norway)4383591
EAN8015644646615
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1.234 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width160 mm
Package Level 1 Height100 mm
Package Level 1 Depth / Length500 mm
Package Level 1 Gross Weight1.299 kg
Package Level 1 EAN8015644646615
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT7
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000529R0612
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
Object Classification CodeQ
UNSPSC39121100
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370414

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
