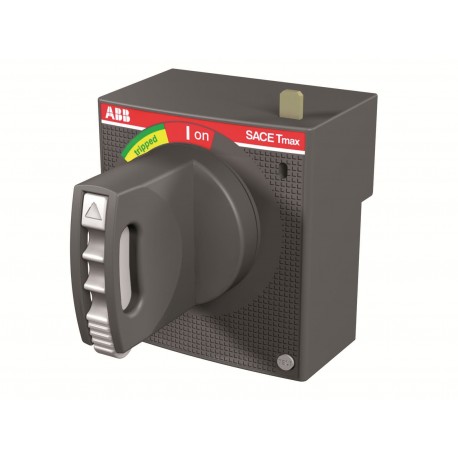

ABB 1SDA066477R1 1SDA066477R1 ABB RHD EM XT1-XT3 F/P EMER. DIRECT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066477R1 ABB RHD EM XT1-XT3 F/P EMER. DIRECT

1SDA066477R1

066477

ABB

1 Pcs.

RHD_EM XT1-XT3 F/P EMER. DIRECT RHD_EM EMERG F/P DIRECT CONTROL - XT1-XT3

Automation > Handle for power circuit breaker
Accessories XT1-4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A rotary handle mechanism, specifically the ABB RHD EM XT1-XT3 F/P EMER. DIRECT (1SDA066477R1), provides direct external control for molded case circuit breakers within electrical switchboards.

These units allow operators to actuate panel-mounted circuit protection devices manually while helping ensure compliance with safety and lockout requirements during servicing tasks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: KXTBRHDEMFP
  • EAN: 8015644692902
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.3 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 105 mm
  • Package Level 1 Height: 95 mm
  • Package Level 1 Depth / Length: 150 mm
  • Package Level 1 Gross Weight: 0.4 kg

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaKXTBRHDEMFP
EAN8015644692902
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width105 mm
Package Level 1 Height95 mm
Package Level 1 Depth / Length150 mm
Package Level 1 Gross Weight0.4 kg
Package Level 1 EAN8015644692902
Additional Information
Configuration TypeLoose or configurable
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
StandardsIEC60947-2
UL489
Suitable ForXT1, XT3
Suitable for Product ClassSACE Tmax XT
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0604
Classifications
ETIM 7EC000229 - Handle for power circuit breaker
ETIM 8EC000229 - Handle for power circuit breaker
ETIM 9EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
Object Classification CodeQ
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
