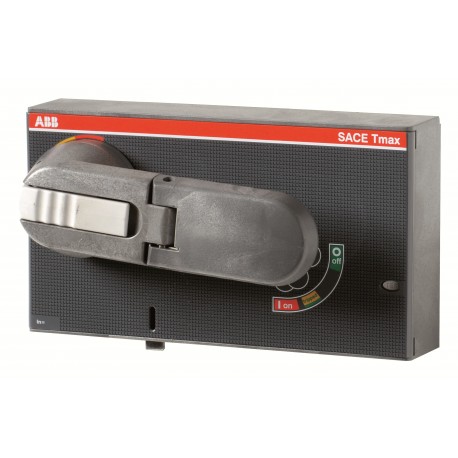

ABB 1SDA062120R1 1SDA062120R1 ABB RHD T7 F/W NORM. DIRECT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA062120R1 ABB RHD T7 F/W NORM. DIRECT

1SDA062120R1

062120

ABB

1 Pcs.

RHD T7 F/W NORM. DIRECT RHD DIRECT CONTROL F/W - T7

Automation > Handle for power circuit breaker
Accessories T7-X1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB RHD T7 F/W NORM. DIRECT is a rotary handle operating mechanism engineered for high-capacity circuit breakers within demanding power distribution setups. This direct-mounting kinematic assembly translates external manual rotation into reliable internal contact movement. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT7RH
  • EAN: 8015644646097
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.3 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 160 mm
  • Package Level 1 Height: 100 mm
  • Package Level 1 Depth / Length: 250 mm
  • Package Level 1 Gross Weight: 0.776 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT7RH
EAN8015644646097
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.3 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width160 mm
Package Level 1 Height100 mm
Package Level 1 Depth / Length250 mm
Package Level 1 Gross Weight0.776 kg
Package Level 1 EAN8015644646097
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT7
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000529R0611
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
