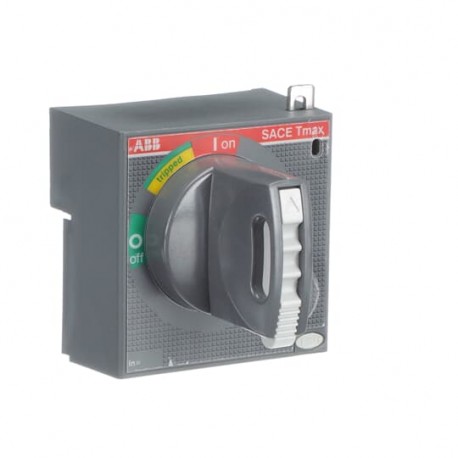

1SDA051381R1 ABB RHD T1-T2-T3 STAND. DIRECT
1SDA051381R1
051381
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA051381R1 ABB RHD T1-T2-T3 STAND. DIRECT functions as a direct rotary handle mechanism mounted directly onto compatible low-voltage circuit breakers. Operators of this classification provide dependable manual switching control on the breaker itself without requiring extended linkage shafts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RoHS Declaration: 1SDL000200R0001
- Environmental Information: 1SDC210015D0201
- Order Code US and Canada: KT3RH
- E-Number (Norway): 4377322
- EAN: 8015644518028
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.14 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 105 mm
- Package Level 1 Height: 95 mm
- Package Level 1 Depth / Length: 150 mm
- Package Level 1 Gross Weight: 0.24 kg
- Package Level 1 EAN: 8015644518028
- Color: Grey
- Product Main Type: Accessories for Tmax T
More info
▲| Material Compliance | |
|---|---|
| RoHS Declaration | 1SDL000200R0001 |
| Environmental | |
| Environmental Information | 1SDC210015D0201 |
| Ordering | |
| Order Code US and Canada | KT3RH |
| E-Number (Norway) | 4377322 |
| EAN | 8015644518028 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.14 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Gross Weight | 0.24 kg |
| Package Level 1 EAN | 8015644518028 |
| Additional Information | |
| Color | Grey |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | ACC |
| Suitable For | T1, T2, T3 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Device | T1-T2-T3 |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
