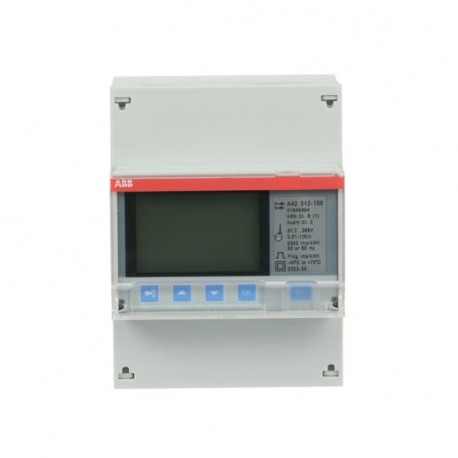

2CMA170512R1000 ABB Reactive energy Cl. 2
2CMA170512R1000
170512
ABB
1 Pcs.
Reactive energy Cl. 2
Ener counter. A42 312-100 Silver RS485
Energy meter 'Silver', Modbus RS485, 1-phase, 6 A
Automation > Kilowatt-hour meter
EQ-METERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CMA170512R1000 ABB Reactive energy Cl. 2 is an electricity meter engineered for tracking reactive energy parameters in single-phase electrical layouts. Such meters are standard additions to control gear assemblies where precise power factor and energy tracking are required.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66.08 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
- End Of Life Disassembling Instructions: 9AKK108470A1374
- Environmental Product Declaration - EPD: 9AKK108467A4138
- Function: Electricity meter
- Sub-Function: Silver
- Current Rating: 6 A
- Communication Interface: Modbus RS485
- Accuracy: Active Energy Class B MID (±1%)
- Measuring Instrument Conformity: Measurement Instrument Directive (MID)
- Meter Tariff Control: External
- Meter Tariff Rating: Multi-Tariff
- Pulse Output Rate: 1-999999
- Number of Poles: 1P
- Number of Phases: 1-phase
More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.08 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Process Efficiency - Product contribute to reducing customer operations environmental footprint | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1374 |
| Environmental Product Declaration - EPD | 9AKK108467A4138 |
| Technical | |
| Function | Electricity meter |
| Sub-Function | Silver |
| Current Rating | 6 A |
| Communication Interface | Modbus RS485 |
| Accuracy | Active Energy Class B MID (±1%) |
| Measuring Instrument Conformity | Measurement Instrument Directive (MID) |
| Meter Tariff Control | External |
| Meter Tariff Rating | Multi-Tariff |
| Pulse Output Rate | 1-999999 |
| Number of Poles | 1P |
| Number of Phases | 1-phase |
| Number of Counter Positions | 7 |
| Number of Digital In/Outputs | 2 Digital Inputs, 2 Digital Outputs |
| Meter Type | Transformer connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Connecting Capacity Main Circuit | 0.5 ... 10 mm² |
| Electrical | |
| Rated Voltage (Ur) | 57.7-288 V |
| Rated Current (In) | 1 A |
| Maximum 6 A | |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Consumption (@Pcons) | 0.801 W |
| Design | |
| Enclosure Material | Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover. |
| Material Compliance | |
| RoHS Declaration | 2CMC484006 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| RoHS Date | 2011-44 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CMC484005D0001 |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 207 g |
| Size | 97X70X65 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.279 kg |
| E-Number (Finland) | 6701015 |
| E-Number (Norway) | 8204016 |
| E-Number (Sweden) | 0980694 |
| Certificates and Declarations | |
| Installation | |
| Instructions and Manuals | 2CMC484004M0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CMC484002M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| UNSPSC | 41113667 |
| eClass | V11.0 : 27142316 |
| IDEA Granular Category Code (IGCC) | 3300 >> Kilowatt-hour meter |
| Object Classification Code | P |
| Standards | IEC 62053-21 |
