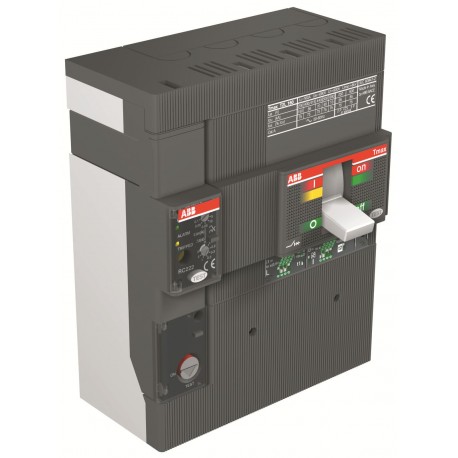

1SDA054955R1 ABB RC222/5 T5 4p F
1SDA054955R1
054955
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB RC222/5 T5 4p F is a specialized modular component used alongside circuit breakers to provide advanced system protection and signal monitoring within electrical distribution switchboards. Such devices monitor electrical parameters and trip protective units automatically during fault conditions to safeguard downstream industrial assets.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: RC222-T54
- E-Number (Finland): 3655736
- E-Number (Norway): 4383650
- EAN: 8015644560942
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Weight: 2.685 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 150 mm
- Package Level 1 Height: 170 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | RC222-T54 |
| E-Number (Finland) | 3655736 |
| E-Number (Norway) | 4383650 |
| EAN | 8015644560942 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Weight | 2.685 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Depth / Length | 300 mm |
| Package Level 1 Gross Weight | 2.826 kg |
| Package Level 1 EAN | 8015644560942 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
