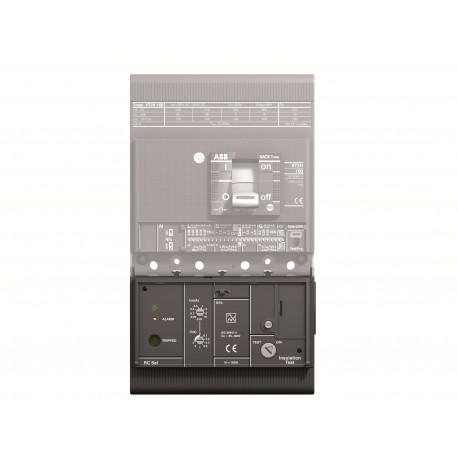

1SDA067126R1 ABB RC Sel x XT2 4p
1SDA067126R1
067126
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB residual current release unit (1SDA067126R1) adds earth-leakage protection capabilities to compatible molded case circuit breakers, safeguarding personnel and equipment from dangerous ground fault currents. It integrates seamlessly into multi-pole distribution panels to monitor current imbalances and trigger rapid protective shutdowns.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXT2ERCSEL-4
- EAN: 8015644010331
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.232 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 160 mm
- Package Level 1 Height: 190 mm
- Package Level 1 Depth / Length: 160 mm
- Package Level 1 Gross Weight: 1.297 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXT2ERCSEL-4 |
| EAN | 8015644010331 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.232 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 160 mm |
| Package Level 1 Gross Weight | 1.297 kg |
| Package Level 1 EAN | 8015644010331 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC60947-2 |
| Suitable For | XT2 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0503 |
| Classifications | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 4878 >> Residual current release for power circuit breaker |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
