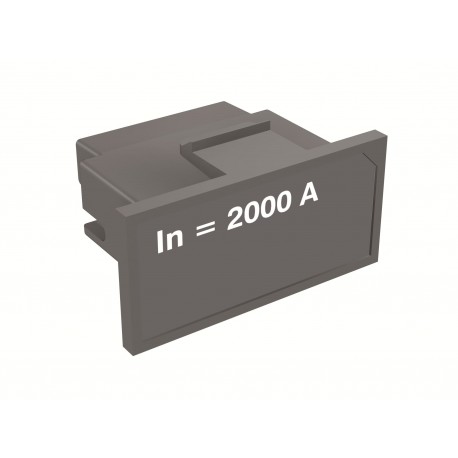

1SDA074251R1 ABB Rating Plug RC R400 E1.2..E6.2
1SDA074251R1
074251
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA074251R1 ABB Rating Plug RC R400 E1.2..E6.2 acts as a calibration and rating module installed in electronic trip units to configure the rated current parameters of air circuit breakers. Rating plugs allow engineers to adapt protective trip characteristics to match specific feeder ampacity requirements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZEA0400RCRP
- EAN: 8015644781842
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 145 mm
- Package Level 1 Height: 10 mm
- Package Level 1 Depth / Length: 200 mm
- Package Level 1 Gross Weight: 1 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEA0400RCRP |
| EAN | 8015644781842 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 10 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 8015644781842 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1.2, E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Rated Voltage (Ur) | 400 V |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| 9AKK106713A5902 | |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| Instructions and Manuals | 1SDH001000R0510 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
