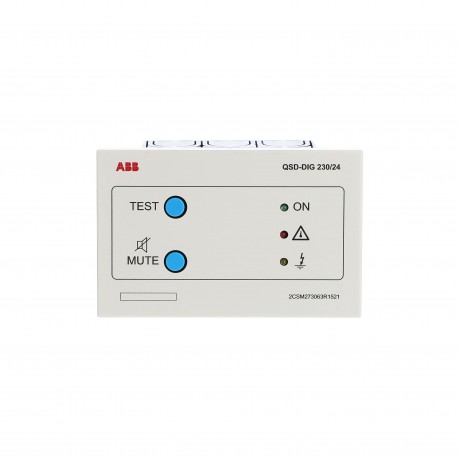

2CSM273063R1521 ABB QSD-DIG 230/24 remote signalling panel
2CSM273063R1521
273063
ABB
1 Pcs.
QSD-DIG 230/24 remote signalling panel
Dist. QSD-DIG230/24
Automation > Device for monitoring of safety-related circuits
Measure, various ITSCE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Basic device |
| Delay Time (τ) | Release 0...0 second [unit of time] |
| Electrical | |
| Rated Operational Voltage | 500 ... 760 V AC |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Power Consumption (@Pcons) | At Rated Load 1 W |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5709 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20180713 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 121 mm |
| Product Net Height | 78 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 200 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.5 kg |
| Replacement Product ID (NEW) | 2CSM257935R1521 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5709 |
| Installation | |
| Instructions and Manuals | 9AKK107046A3897 |
| Mounting Orientation | Horizontal |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC004033B0202 |
| External Classifications and Standards | |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 10 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Basic device |
| Suitable for monitoring of position switches (EF007270) | No |
| Suitable for monitoring of emergency-stop circuits (EF007268) | No |
| Suitable for monitoring of valves (EF007272) | No |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | No |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| Suitable for monitoring of magnetic switches (EF007266) | No |
| Suitable for monitoring of proximity switches (EF007267) | No |
| Suitable for rail mounting (EF003972) | No |
| With detachable clamps (EF003340) | No |
| With start input (EF003342) | No |
| With muting function (EF004057) | Yes |
| With feedback circuit (EF003343) | No |
| Release-delay (EF001129) | 0 s |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | No |
| Width (EF000008) | 121 mm |
| Height (EF000040) | 78 mm |
| Depth (EF000049) | 55 mm |
