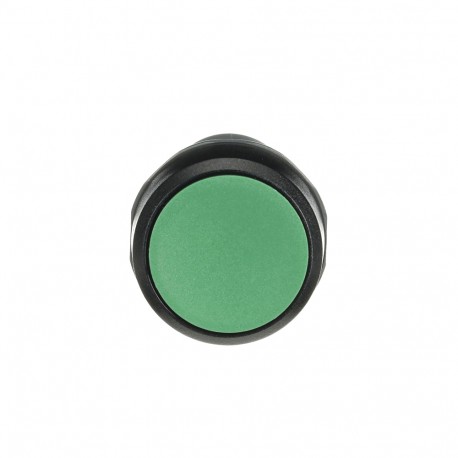

ABB 1SFA619100R1072 1SFA619100R1072 ABB PUSHBUTTON CP1-10G-11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA619100R1072 ABB PUSHBUTTON CP1-10G-11

1SFA619100R1072

1SFA619100R1072

ABB

1 unit

PUSHBUTTON#CP1-10G-11 PULS. EVENNESS. OPACO MOM.1NA+1NC, V CP1-10G-11 Pushbutton

Automation > Push button, complete
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width0.03 m
Product Net Height0.03 m
Product Net Depth / Length0.055 m
Product Net Weight0.022 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorGreen
Actuator TypeFlush
Bezel MaterialPlastic
IlluminationNon-illuminated
FunctionMomentary
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree3
Rated Insulation Voltage (Ui)300 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Frequency (f)50 / 60 Hz
Rated Operational VoltageMaximum 300 V
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie)(240 V) 2 A
(220 / 240 V) 2 A
Power LossMaximum 5 W
Mechanical Durability0.5 million
Connecting CapacityFlexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection TypeScrew Clamp
Terminal TypeScrew Terminals
Tightening Torque0.8 N·m
Wire Stripping Length6 mm
Technical UL/CSA
Connecting Capacity UL/CSA1x 22...14 AWG
2x 22...14 AWG
Environmental
Degree of ProtectionFront IP66
Front IP67
Front IP69K
Terminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCQC_CN_CN50749
CQC CertificateCQC2003010305054693
cURus CertificateUL_E496500-20171020
Declaration of Conformity - CCC2020980305001187
Declaration of Conformity - CE2CMT2015-005451
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate9AKK107046A3749
EAC CertificateRU C-CN.ME77.B.00587/20
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width0.125 m
Package Level 1 Depth / Length0.235 m
Package Level 1 Height0.05 m
Package Level 1 Gross Weight0.224 kg
Package Level 1 EAN7320500241004
External Classifications and Standards
Object Classification CodeS
ETIM 6EC001028 - Push button, complete
ETIM 7EC001028 - Push button, complete
ETIM 8EC001028 - Push button, complete
eClassV11.0 : 27371228
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2312731
E-Number (Norway)4372678
E-Number (Sweden)3711272
