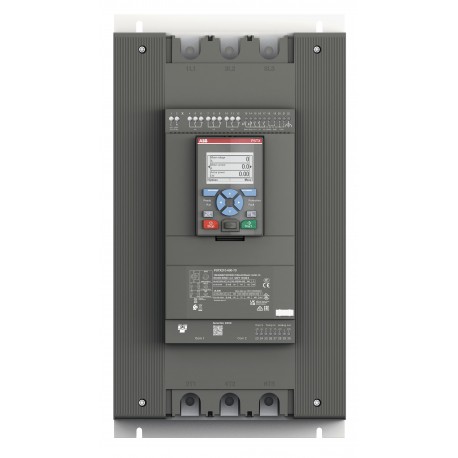

1SFA898212R7000 ABB Soft Starter 400V/110kW, 500V/132kW, 690V/184kW, 210A
1SFA898212R7000
898212
ABB
1 Pcs.
Soft Starter 400V/110kW, 500V/132kW, 690V/184kW, 210A
PSTX210-690-70 SOFT STARTER
PSTX210-690-70 Softstarter - 210 A - 208 ... 690 V AC
Automation > Soft starter
starters PSTX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132012C0201 |
| Instructions and Manuals | 1SFC132428M0201 |
| Instructions and Manuals (Part 2) | 1SFC132081M0201 |
| Instructions and Manuals (Part 3) | 1SFC132060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC181168_EPLAN |
| Wiring Diagram | N/A |
| Dimensions | |
| Product Net Width | 258 mm |
| Product Net Height | 470 mm |
| Product Net Depth / Length | 279 mm |
| Product Net Weight | 13.3 kg |
| Technical | |
| Rated Operational Voltage | 208 ... 690 V AC |
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 59 kW |
| (400 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 184 kW | |
| Rated Operational Current - In-Line Connection (Ie) | 210 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 102 kW |
| at 400 V 184 kW | |
| at 500 V 250 kW | |
| at 690 V 315 kW | |
| Rated Operational Current - Inside Delta Connection | 360 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 second [unit of time] |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Hole Diameter 10.2 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 25 N·m |
| Product Main Type | PSTX210 |
| Function | Auto phase sequence detection |
| Automatic restart | |
| Current limit | |
| Current limit ramp | |
| Dual current limit | |
| Dynamic brake | |
| Electricity metering | |
| Electronic overload Time-to-cool | |
| Emergency mode | |
| Event log | |
| Full voltage start | |
| Jog with slow speed, forward and reverse | |
| Keypad password | |
| Kick start | |
| Limp mode with two-phase motor control if one set of thyristors is shorted | |
| Motor heating | |
| Pre-start function | |
| Pump cleaning | |
| Real time clock | |
| Sequence start | |
| Soft start with torque control | |
| Soft start with voltage ramp | |
| Soft stop with torque control | |
| Soft stop with voltage ramp | |
| Stand still brake | |
| Start reverse (external contactors) | |
| Thyristor runtime measurement | |
| Torque limit | |
| Voltage sags detection | |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 60 Hp |
| (220 ... 240 V AC) Three Phase 75 Hp | |
| (440 ... 480 V AC) Three Phase 150 Hp | |
| (550 ... 600 V AC) Three Phase 200 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 690 V |
| Tightening Torque UL/CSA | Main Circuit 221.3 |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CN: CQC2014010304744408 / SE: CQC2014010304724384 |
| Declaration of Conformity - CCC | CN: 2020980304001093 / SE: 2020980304001490 |
| Declaration of Conformity - CE | 2CMT005209 |
| DNV Certificate | TAE000087N |
| Container Information | |
| Package Level 1 Width | 352 mm |
| Package Level 1 Depth / Length | 379 mm |
| Package Level 1 Height | 564 mm |
| Package Level 1 Gross Weight | 16.3 kg |
| Package Level 1 EAN | 7320500501528 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter |
| ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter |
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at 40 °C Tu (EF007039) | 210 A |
| Rated operating voltage Ue (EF002418) | 208 V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 59 kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 110 kW |
| Rated power three-phase motor, inside delta, at 230 V (EF007055) | 102 kW |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | 184 kW |
| Internal bypass (EF009214) | Yes |
| With display (EF000458) | Yes |
| Torque control (EF009215) | Yes |
| Rated surrounding temperature without derating (EF007074) | 40 °C |
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 100 V |
| Voltage type for actuating (EF008242) | AC |
| Integrated motor overload protection (EF007297) | Yes |
| Release class (EF006668) | Adjustable |
| Degree of protection (IP) (EF005474) | IP00 |
| Degree of protection (NEMA) (EF011959) | 1 |
