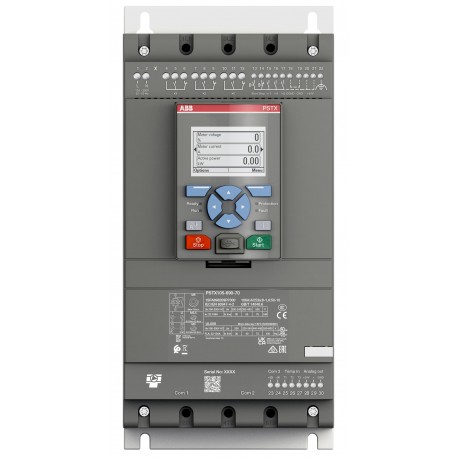

1SFA898209R7000 ABB Soft Starter 400V/55kW, 500V/75kW, 690V/90kW, 106A
1SFA898209R7000
898209
ABB
1 Pcs.
Automation > Soft starter
starters PSTX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Optimized for smooth industrial motor starting, the Abb 1SFA898209R7000 soft starter regulates voltage ramps to eliminate mechanical shock and reduce peak electrical demand. Industrial setups deploy these units to protect pumps, fans, and conveyor systems from abrupt torque loads during the power-up sequence.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371091
- Data Sheet, Technical Information: 1SFC132012C0201
- Instructions and Manuals: 1SFC132428M0201
- Instructions and Manuals (Part 2): 1SFC132081M0201
- Instructions and Manuals (Part 3): 1SFC132060M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC181165_EPLAN
- Wiring Diagram: N/A
- Product Net Width: 150 mm
- Product Net Height: 314 mm
- Product Net Depth / Length: 198 mm
- Product Net Weight: 4.7 kg
- Rated Operational Voltage: 208 ... 690 V AC
- Rated Control Supply Voltage (U s ): 100 ... 250 V AC
- Rated Control Circuit Voltage (U c ): 24 V DC
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132012C0201 |
| Instructions and Manuals | 1SFC132428M0201 |
| Instructions and Manuals (Part 2) | 1SFC132081M0201 |
| Instructions and Manuals (Part 3) | 1SFC132060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC181165_EPLAN |
| Wiring Diagram | N/A |
| Dimensions | |
| Product Net Width | 150 mm |
| Product Net Height | 314 mm |
| Product Net Depth / Length | 198 mm |
| Product Net Weight | 4.7 kg |
| Technical | |
| Rated Operational Voltage | 208 ... 690 V AC |
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 30 kW |
| (400 V) 55 kW | |
| (500 V) 75 kW | |
| (690 V) 90 kW | |
| Rated Operational Current - In-Line Connection (Ie) | 105 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 55 kW |
| at 400 V 90 kW | |
| at 500 V 110 kW | |
| at 690 V 160 kW | |
| Rated Operational Current - Inside Delta Connection | 181 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 second [unit of time] |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Cable Clamp |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 8 N·m |
| Product Main Type | PSTX105 |
| Function | Auto phase sequence detection |
| Automatic restart | |
| Current limit | |
| Current limit ramp | |
| Dual current limit | |
| Dynamic brake | |
| Electricity metering | |
| Electronic overload Time-to-cool | |
| Emergency mode | |
| Event log | |
| Full voltage start | |
| Jog with slow speed, forward and reverse | |
| Keypad password | |
| Kick start | |
| Limp mode with two-phase motor control if one set of thyristors is shorted | |
| Motor heating | |
| Pre-start function | |
| Pump cleaning | |
| Real time clock | |
| Sequence start | |
| Soft start with torque control | |
| Soft start with voltage ramp | |
| Soft stop with torque control | |
| Soft stop with voltage ramp | |
| Stand still brake | |
| Start reverse (external contactors) | |
| Thyristor runtime measurement | |
| Torque limit | |
| Voltage sags detection | |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 30 Hp |
| (220 ... 240 V AC) Three Phase 40 Hp | |
| (440 ... 480 V AC) Three Phase 75 Hp | |
| (550 ... 600 V AC) Three Phase 100 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 690 V |
| Tightening Torque UL/CSA | Main Circuit 70.8 |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e7940dd6-ebdc-421a-ac15-6f53c066ab8e Sweden |
| Simplified SCIP | 0b26b9b3-1b09-4bda-808b-1c558c375102 Portugal |
| 0ecd87f6-0b3d-4907-8e10-b07e53cce57a Greece | |
| 0ff651df-9e2c-4fd7-b1e3-7cdaed08d236 Estonia | |
| 185e87bb-a37a-47ec-bd3d-a49bd77cbe1f Belgium | |
| 26dbf795-797e-4169-9759-e7ad5374af6a Sweden | |
| 28ddc28d-3da5-43e8-94da-a1fef8c1eab9 Germany | |
| 2ac451b5-ed1c-4476-9960-5ffabd9a0512 Finland | |
| 32f62b4f-95d7-4d73-aff3-62825836cebe Norway | |
| 3bed07d0-3bb9-44af-a139-581d61ebcd55 Hungary | |
| 42618e39-7d5c-43e9-9c94-b18398113682 Poland | |
| 4b0c1e22-8250-42b2-85b2-2be2b3907126 Germany | |
| 53f68d24-5dc7-4aed-be25-6a92d43375e7 Germany | |
| 58568401-1ee5-4bda-92b9-97e38b7e9aee Hungary | |
| 7cd4d1f3-bb06-450b-b35d-875203c7f72d France | |
| 8697daae-e634-4686-a21d-36ea2c0dac72 Czech Republic | |
| 8777ac81-e4a5-4d81-8368-c11520219b5a Germany | |
| 8ef52d23-dd29-4c2b-8238-e3befec6b35f Poland | |
| 8f2933a9-0358-42b9-976b-1823cdc5cecc Bulgaria | |
| 9615b811-0bd3-4002-9062-d525714c5595 Croatia | |
| a8593dc1-700a-43cd-8208-68e0d6de8729 France | |
| ba0882b5-3f8d-416f-b004-0428942396a0 Denmark | |
| bfbd2c7e-2d98-4400-8a70-755f22a45b45 Spain | |
| c780222a-3d86-4656-bd30-fa6943426d29 Belgium | |
| d9ebb58f-6b81-4c30-aa3f-99a3694286dd Italy | |
| ed181487-611b-4185-8e13-39630ba2d6c0 Netherlands | |
| ed52b8d9-4f83-4b16-ab5b-c14b8acb3935 Germany | |
| ee24cbb2-bc7b-487d-8c7d-25111e9ddb8b Poland | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CN: CQC2014010304744405 / SE: CQC2014010304724380 |
| Declaration of Conformity - CCC | CN: 2020980304001091 / SE: 2020980304001489 |
| Declaration of Conformity - CE | 2CMT005209 |
| DNV Certificate | TAE000087N |
| Container Information | |
| Package Level 1 Width | 200 mm |
| Package Level 1 Depth / Length | 282 mm |
| Package Level 1 Height | 388 mm |
| Package Level 1 Gross Weight | 5.7 kg |
| Package Level 1 EAN | 7320500501344 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter |
| ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter |
