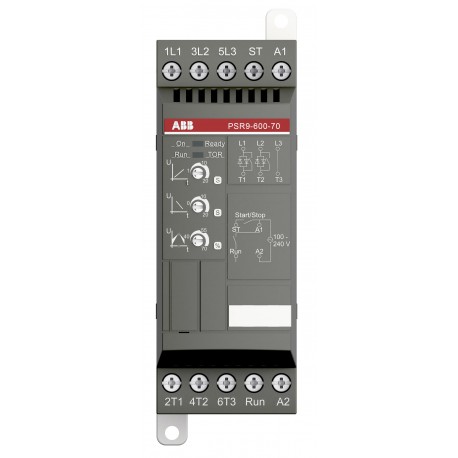

1SFA896105R1100 ABB Soft Starter 230V/2,2kW, 400V/4kW, 500V/4kW, 9A
1SFA896105R1100
896105
ABB
1 Pcs.
Soft Starter 230V/2,2kW, 400V/4kW, 500V/4kW, 9A
PSR9-600-11 STARTS. SMOOTH CONTROL 24VAC/DC
PSR9-600-11 Softstarter - 9 A - 208 ... 600 V AC
Automation > Soft starter
PSR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Softstarter PSR9-600-11 for max 600V main voltage and 24V AC/DC control supply voltage
Ordering
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
Popular Downloads
| Data Sheet, Technical Information: | 1SFC132005C0201 |
| Instructions and Manuals: | 1SFC132076M9901 |
Dimensions
| Product Net Width: | 45.000 mm |
| Product Net Height: | 140.000 mm |
| Product Net Depth / Length: | 114.000 mm |
| Product Net Weight: | 0.4 kg |
Technical
| Rated Operational Voltage: | Main Circuit 208 ... 600 V AC |
| Rated Control Supply Voltage (Us): | 24 V AC/DC |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V |
| Rated Operational Power - In-Line Connection (Pe): | (230 V) 2.2 kW (400 V) 4 kW (500 V) 4 kW |
| Rated Operational Current - In-Line Connection (Ie): | 9 A |
| Service Factor Percentage: | 100 % |
| Overload Protection: | Recommended MS116 6.30 … 10.00 |
| Integrated Electronic Overload: | No |
| Starting Capacity at Maximum Rated Current Ie: | 4xIe for 6s |
| Ramp Time: | During Start 1 ... 10 second [unit of time] During Stop 0 ... 20 second [unit of time] |
| Initial Voltage During Start: | 40 ... 70 % |
| Step Down Voltage Special Ramp: | 100 ... 60 % |
| Current Limit Function: | No |
| Switch for Inside Delta Connection: | No |
| Run Signal Relay: | Yes |
| By-pass Signal Relay: | No |
| Fault Signal Relay: | No |
| Overload Signal Relay: | No |
| Signal indication completed start ramp (LED): | Green |
| Signal indication ready to start/standby ON (LED): | Green |
| Signal indication running R (LED): | Green |
| Signal indication ramping up/down (LED): | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: | 10 |
| Communication: | FiledBusPlug(Optional) |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type: | Screw Terminals |
| Connecting Capacity Main Circuit: | Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit: | Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit: | Rigid 1/2x0.75 ... 2.5 mm² |
| Tightening Torque: | Main Circuit 1 N·m Supply Circuit 1 N·m Control Circuit 1 N·m |
| Product Main Type: | PSR9 |
Environmental
| Ambient Air Temperature: | Storage -40 ... +70 °C Operation -25 ... +60 °C |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
Certificates and Declarations (Document Number)
| Declaration of Conformity - CE: | 2CMT004861 |
| Environmental Information: | 1SFC132038D0201 |
| Instructions and Manuals: | 1SFC132076M9901 |
| RoHS Information: | 1SFC132031D0202 |
Container Information
| Package Level 1 Width: | 51 mm |
| Package Level 1 Depth / Length: | 156 mm |
| Package Level 1 Height: | 124 mm |
| Package Level 1 Gross Weight: | 0.55 kg |
| Package Level 1 EAN: | 7320500477168 |
| Package Level 1 Units: | 1 piece |
| Package Level 2 Units: | 1 piece |
Classifications
| Object Classification Code: | Q |
| ETIM 4: | EC002572 - Electronic motor control and protection device |
| ETIM 5: | EC002572 - Electronic motor control and protection device |
| UNSPSC: | 39121521 |
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at 40 °C Tu (EF007039) | 9 A |
| Rated operating voltage Ue (EF002418) | 208 V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 2.2 kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 4 kW |
| Internal bypass (EF009214) | Yes |
| With display (EF000458) | No |
| Torque control (EF009215) | No |
| Rated surrounding temperature without derating (EF007074) | 40 °C |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Integrated motor overload protection (EF007297) | No |
| Release class (EF006668) | Adjustable |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
