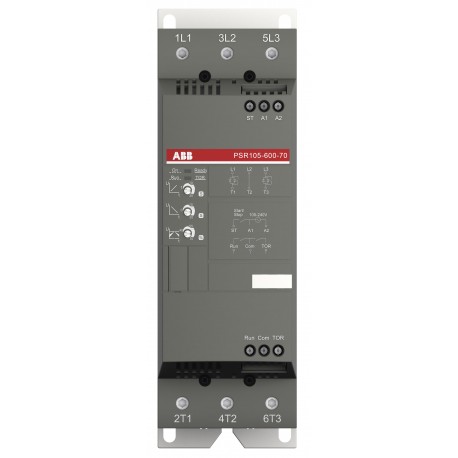

1SFA896115R1100 ABB Soft Starter 230V/30kW, 400V/55kW, 500V/55kW, 105A
1SFA896115R1100
896115
ABB
1 Pcs.
Soft Starter 230V/30kW, 400V/55kW, 500V/55kW, 105A
PSR105-600-11STARTS. SOFT MANDO24VCA/CC
PSR105-600-11 Softstarter - 105 A - 208 ... 600 V AC
Automation > Soft starter
PSR
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC132012C0201 |
| Instructions and Manuals | 1SFC132079M9901 |
| Instructions and Manuals (Part 3) | 1SFC132060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC157495_EPLAN |
| Wiring Diagram | N/A |
| Dimensions | |
| Product Net Width | 180 mm |
| Product Net Height | 220 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 2.1 kg |
| Technical | |
| Rated Operational Voltage | 208 ... 600 V AC |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz |
| Main Circuit 50 / 60 Hz | |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 30 kW |
| (400 V) 55 kW | |
| (500 V) 55 kW | |
| Rated Operational Current - In-Line Connection (Ie) | 105 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS495 80 ... 100 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 second [unit of time] |
| 1 ... 10 second [unit of time] | |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Rigid 1x 6 ... 95 mm² |
| Rigid 2 x 6 ... 35 mm² | |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm² |
| 2 x 0.75 ... 2.5 mm² | |
| Rigid 1/2 x 0.75 ... 2.5 mm² | |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m |
| Main Circuit 8 N·m | |
| Supply Circuit 0.6 N·m | |
| Product Main Type | PSR105 |
| Function | Soft start with voltage ramp |
| Soft stop with voltage ramp | |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 30 Hp |
| (220 ... 240 V AC) Three Phase 40 Hp | |
| (440 ... 480 V AC) Three Phase 75 Hp | |
| (550 ... 600 V AC) Three Phase 100 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb |
| Main Circuit 70.8 | |
| Supply Circuit 5.3 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006481 |
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1caf577d-084a-43ed-a6ea-ef420754c09b China |
| Simplified SCIP | d2b5998d-e346-4f05-964d-2780655f6d37 Hungary |
| 8b445308-2648-47f1-a41a-593564e786e9 Greece | |
| b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany | |
| dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany | |
| cca2898a-4dfd-4f15-90bd-95270e095388 Estonia | |
| e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany | |
| ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria | |
| 17e973dc-7870-46c5-a7e7-ef5f34730393 Poland | |
| d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands | |
| a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany | |
| 276c5ed1-b47c-4b11-a7de-758b126406ce Germany | |
| 6316367b-0e87-4022-97c0-bb1b38236b6e Denmark | |
| cc881b33-6bef-4421-b675-346654246e4e Poland | |
| 86228e4d-5940-4439-a735-a2af311ecd58 Portugal | |
| f0d51129-e59b-4974-a411-7d241913fc46 France | |
| bb8d235c-9e5b-4861-b31e-f60b685801dc Belgium | |
| c758432a-acda-443f-bf65-b09c1ddd57f5 Norway | |
| 9efdb42b-c1fe-4671-af53-15557daeb42b Finland | |
| e5f18c1f-acfd-4148-888a-6b068706089f Sweden | |
| 9682c877-ec29-4bdf-8354-056792b9c9c8 Poland | |
| 0584f014-7b5d-4d83-af8c-47f39eac3390 France | |
| 54faef34-4bb9-42c2-b843-1d3ba1df2c31 Sweden | |
| a5ccf6bc-f1a2-417e-a9f7-4e523b20f42b Hungary | |
| 501c1aa6-d749-4002-9e54-1ebf614fa8f9 Spain | |
| 79470bfd-aa43-45f3-a204-fd05858a3cd0 Belgium | |
| 76f5a438-4408-4c0d-b2a0-76fa6190c7df Croatia | |
| 701e91fa-0ee5-4117-aa1f-62872988c231 Czech Republic | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | CQC2008010304295498 |
| Declaration of Conformity - CCC | 2020980304001090 |
| Declaration of Conformity - CE | 2CMT004861 |
| Container Information | |
| Package Level 1 Width | 195 mm |
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 230 mm |
| Package Level 1 Gross Weight | 2.3 kg |
| Package Level 1 EAN | 7320500477267 |
| Package Level 1 Units | box 1 piece |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter |
| ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter |
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at 40 °C Tu (EF007039) | 105 A |
| Rated operating voltage Ue (EF002418) | 208 V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 30 kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 55 kW |
| Internal bypass (EF009214) | Yes |
| With display (EF000458) | No |
| Torque control (EF009215) | No |
| Rated surrounding temperature without derating (EF007074) | 40 °C |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Integrated motor overload protection (EF007297) | No |
| Release class (EF006668) | Adjustable |
| Degree of protection (IP) (EF005474) | IP10 |
| Degree of protection (NEMA) (EF011959) | 1 |
