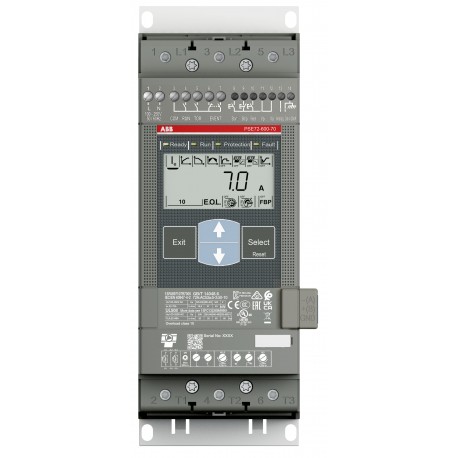

ABB 1SFA897107R7000 1SFA897107R7000 ABB PSE72-600-70 Softstarter 72 A 208 ... 600 V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA897107R7000 ABB PSE72-600-70 Softstarter 72 A 208 ... 600 V AC

1SFA897107R7000

897107

ABB

1 Pcs.

PSE72-600-70 Softstarter - 72 A - 208 ... 600 V AC SOFT STARTER PSE72-600-70

Automation > Soft starter
starters PSE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85371091
Popular Downloads
Data Sheet, Technical Information1SFC132012C0201
Instructions and Manuals1SFC132427M0201
Instructions and Manuals (Part 2)1SFC132057M0201
Instructions and Manuals (Part 3)1SFC132060M0201
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC170231_EPLAN
Wiring DiagramN/A
Dimensions
Product Net Width90 mm
Product Net Height245 mm
Product Net Depth / Length184 mm
Product Net Weight2.5 kg
Technical
Rated Operational Voltage208 ... 600 V AC
Rated Control Supply Voltage (Us)100 ... 250 V AC
Rated Control Circuit Voltage (Uc)24 V DC
Rated Frequency (f)50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe)(230 V) 18.5 kW
(400 V) 37 kW
(500 V) 45 kW
Rated Operational Current - In-Line Connection (Ie)72 A
Service Factor Percentage100 %
Overload ProtectionBuild-in electronic overload protection
Integrated Electronic OverloadYes
Starting Capacity at Maximum Rated Current Ie4xIe for 10s
Ramp Time0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start30 ... 70 %
Step Down Voltage Special RampNo %
Current Limit Function1.5 ... 7xIe
Switch for Inside Delta ConnectionNo
Run Signal RelayYes
By-pass Signal RelayYes
Fault Signal RelayYes
Overload Signal RelayYes
Analog Outputs4…20 mA
Signal Indication Completed Start Ramp (LED)Green
Signal Indication Ready to Start/Standby ON (LED)Green
Signal Indication Running R (LED)Green
Signal Indication Ramping Up/Down (LED)Green
Signal Indication Protection (LED)Yellow
Signal Indication Fault (LED)Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time10
CommunicationModbus-RTU
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal TypeScrew Terminals
Connecting Capacity Main CircuitHole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control CircuitRigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply CircuitRigid 1 x 2.5
Tightening TorqueControl Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main TypePSE72
FunctionSoft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection FunctionElectronic overload protection, EOL; Locked rotor protection; Current underload protection
Technical UL/CSA
Horsepower Rating UL/CSA(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 25 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 60 Hp
Maximum Operating Voltage UL/CSAMain Circuit 600 V
Tightening Torque UL/CSAControl Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Environmental
Ambient Air TemperatureOperation -25 ... +60 °C
Storage -40 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006481
RoHS Declaration2CMT2022-006500
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP8462d3d9-3bdb-42b0-9715-4ea626c99564 Sweden
Toxic Substances Control Act - TSCA2CMT2023-006524
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CQC CertificateCQC2011010304468093
Declaration of Conformity - CCC2020980304001546
Declaration of Conformity - CE2CMT2015-005447
DNV Certificate1SFC132383M0001 TAE0000342
Container Information
Package Level 1 Width178 mm
Package Level 1 Depth / Length257 mm
Package Level 1 Height288 mm
Package Level 1 Gross Weight3.2 kg
Package Level 1 EAN7320500400654
Package Level 1 Unitsbox 1 piece
External Classifications and Standards
Object Classification CodeQ
ETIM 7EC000640 - Soft starter
ETIM 8EC000640 - Soft starter
ETIM 9EC000640 - Soft starter
eClassV11.0 : 27370907
UNSPSC39121521
IDEA Granular Category Code (IGCC)4740 >> Soft starter
